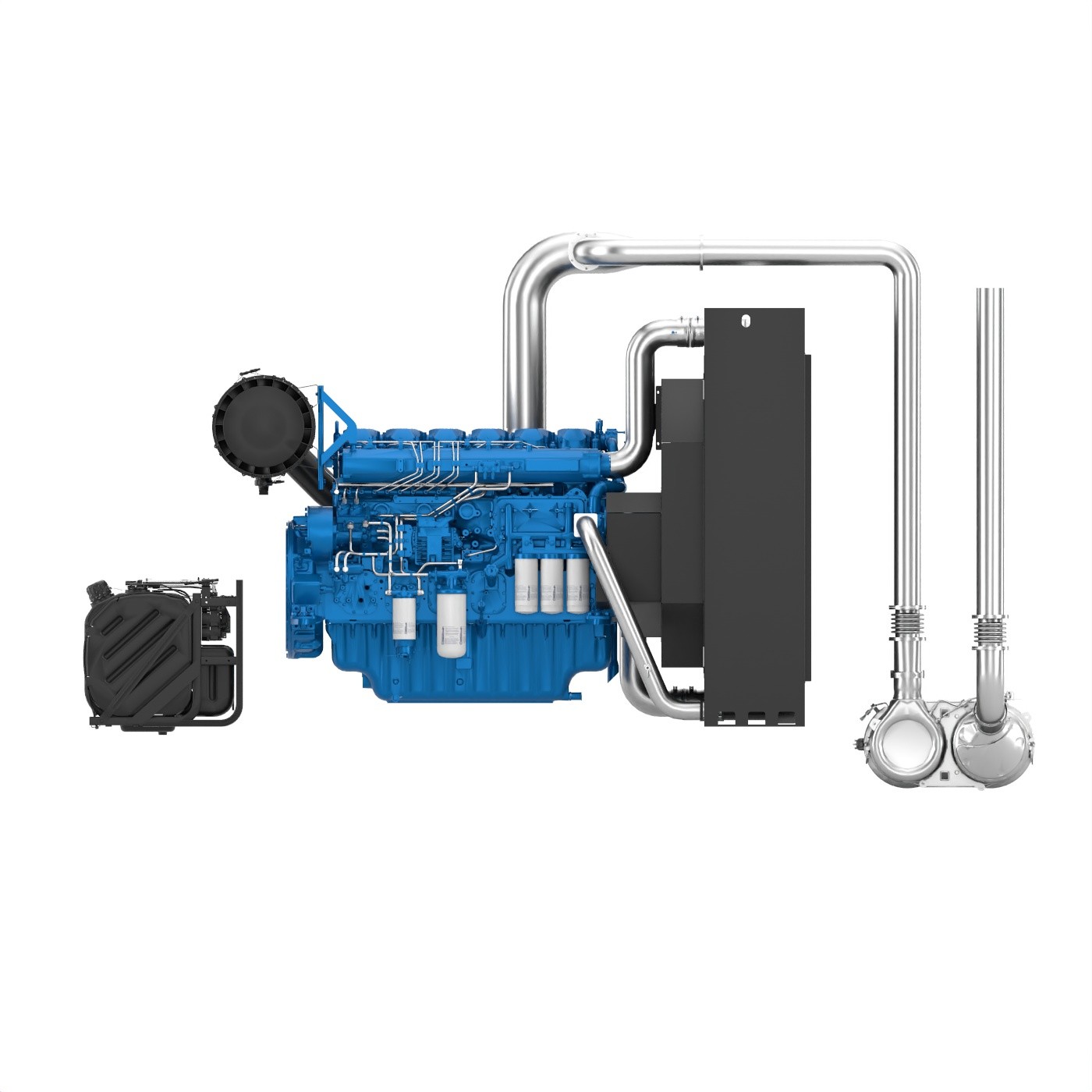

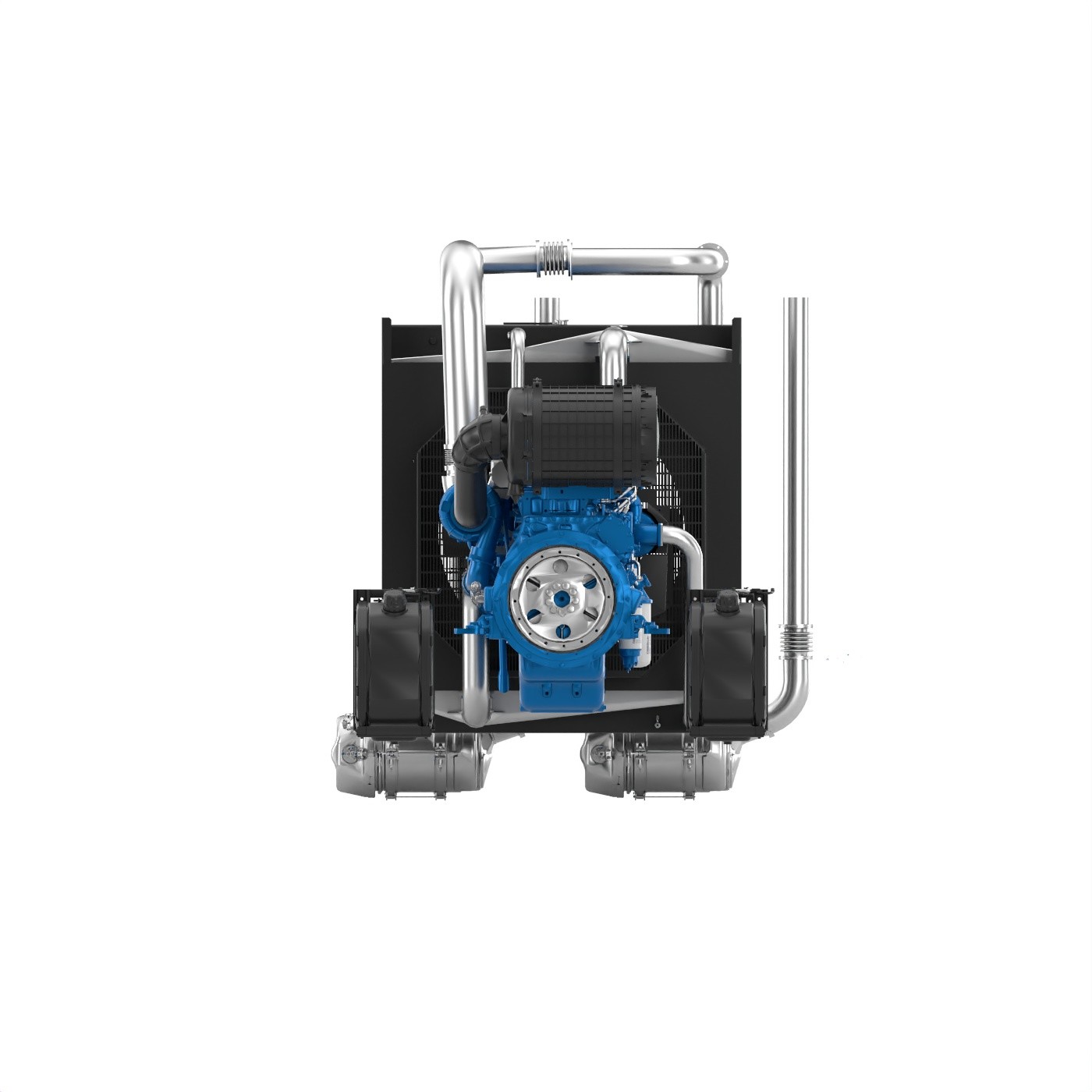

6M33G600/6 Weichai Baudouin Engine Perfect for Heavy-Duty Applications
| Place of Origin | CHINA |
|---|---|
| Brand Name | baudouin |
| Certification | CE |
| Model Number | 6M33 |
| Minimum Order Quantity | 1 |
| Price | 9700usd |
| Packaging Details | wooden cases |
| Delivery Time | 30 days |
| Supply Ability | 200 pcs month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
6M33 Weichai Baudouin Engine Specification
| Model | Speed (RPM) | Dimensions with Standard Radiator (L × W × H, mm) | Weight with Standard Radiator (kg) | Dimensions with Optional Radiator (L × W × H, mm) | Weight with Optional Radiator (kg) |
|---|---|---|---|---|---|
| 6M33G2D0/5 | 1500 | 2798 × 1680 × 1954 | 2620 | 2575 × 1440 × 1755 | 2370 |
| 6M33G750/5 | 1500 | 2798 × 1680 × 1954 | 2620 | 2575 × 1310 × 1732 | 2370 |
| 6M33G6D0/S | 1500/1800 | 2798 × 1680 × 1954 | 2620 | 2575 × 1310 × 1732 | 2370 |
| 6M33G2D0/S | 1500/1800 | 2798 × 1680 × 1954 | 2620 | 2575 × 1310 × 1732 | 2370 |
| 6M33G600/6 | 1800 | 2798 × 1680 × 1954 | 2620 | 2575 × 1310 × 1732 | 2370 |
| 6M33G633/6 | 1800 | 2798 × 1680 × 1954 | 2620 | 2575 × 1310 × 1732 | 2370 |
| 6M33G2D0/6 | 1800 | 2808 × 1500 × 1764 | 2620 | 2575 × 1440 × 1755 | 2370 |
Standard Equipment
Engine and Block
- Cast iron cylinder block with inspection door per cylinder.
- Cast iron cylinder liners, wet type, and replaceable valve guides and seats.
- Separate cast iron cylinder heads with 4 valves.
- Hardened steel forged crankshaft with induction-hardened journals, crank pins, and radius.
- Lube oil-cooled light alloy pistons with high-performance piston rings.
Cooling System
- Radiator and hoses supplied separately.
- Thermostatically-controlled system with belt-driven coolant pump and pusher fan.
Lubrication System
- Full-flow screwable oil filters.
- Lube oil purifier with replaceable cartridge (not included for ECU engines).
- Water-cooled lube oil cooler.
Fuel System
- In-line fuel injection pump with flanged electronic governor (for engines with electronic governor).
- High-pressure Common Rail injection system (for engines with ECU).
- Duplex fine filter and water separation filter assembly with transparent cup for better efficiency.
- Electric fuel priming pump integrated into the filter support.
Additional Features
- Top-mounted turbocharger optimized for gen-set applications.
- Special rear-mounted air filter with restriction indicator.
- Exhaust manifold and turbocharger shield for heat isolation.
- 24 Vdc electric starter motor and battery charging alternator.
- LOP + HWT sensors.
- SAE 1 flywheel housing and 14” flywheel.
