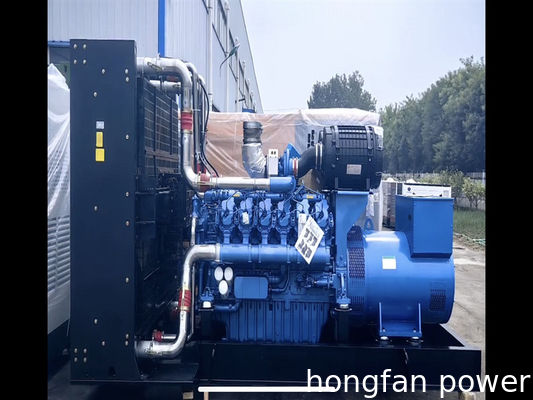

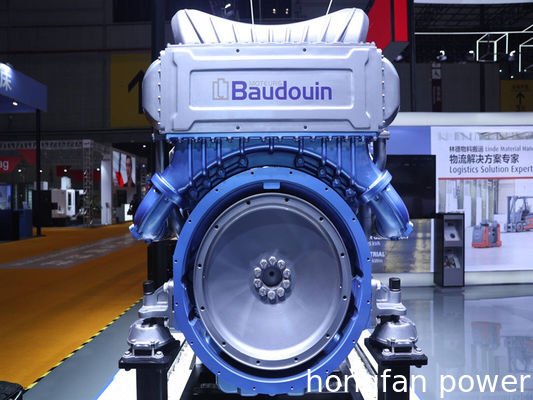

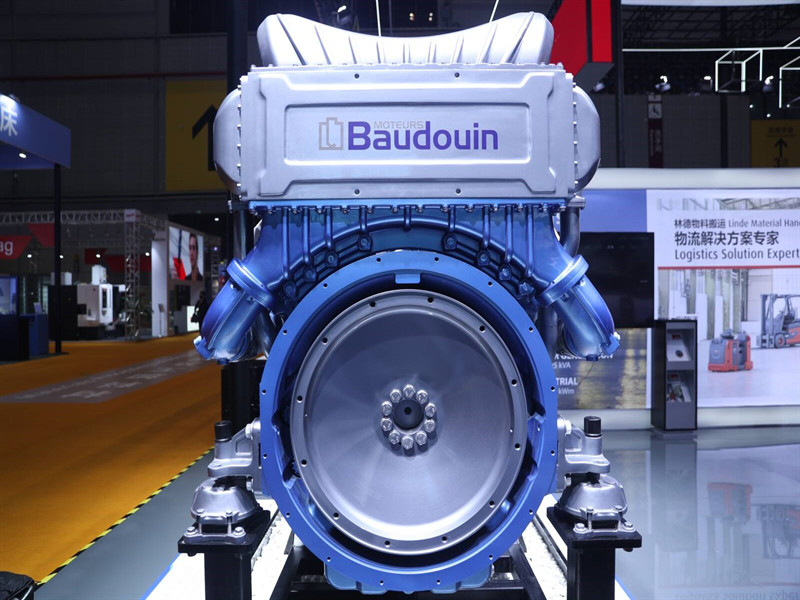

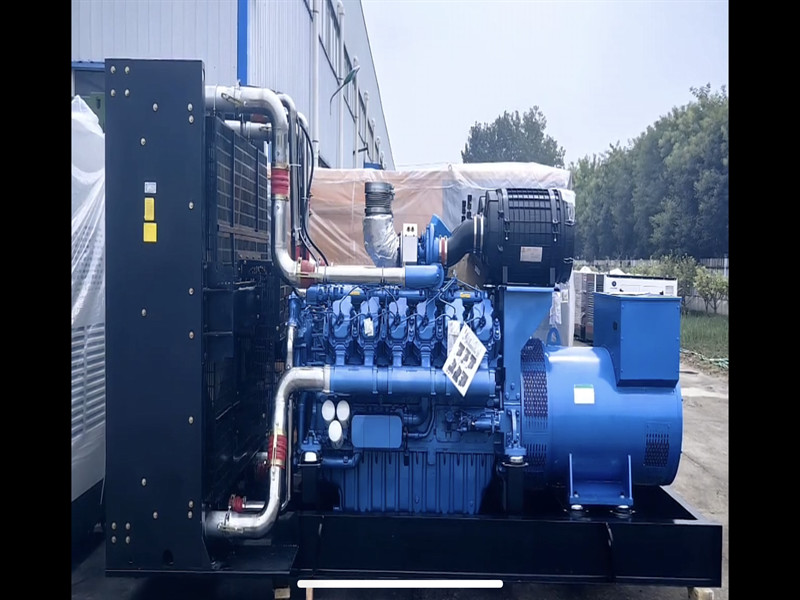

Weichai Baudouin 500KW diesel generator engine model 6M33D572E200
| Place of Origin | CHINA |
|---|---|
| Brand Name | baudouin |
| Certification | CE |
| Model Number | 6M33 |
| Minimum Order Quantity | 1 |
| Price | 9700usd |
| Packaging Details | wooden cases |
| Delivery Time | 30 days |
| Supply Ability | 200 pcs month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Compression Ratio | 17.5:1 | Governor Type | Mechanical |
|---|---|---|---|
| Engine Type | Diesel | Aspiration | Turbocharged And Intercooled |
| Displacement (L) | 9.726 | Model | 6M33D572E200 |
| Fuel System | Common Rail | Number Of Cylinders | 6 |
| Emission Standard | Euro III | Max Power (Kw) | 246 |
| Max Torque (Nm) | 1400 | Cooling System | Water-cooled |
| Cylinder Arrangement | In-line | Bore X Stroke (Mm) | 126 X 130 |
Product Description
When it comes to reliable and high-performance diesel generators, the Weichai Baudouin 500KW diesel generator powered by the 6M33D572E200 engine stands out as a prime choice. Designed to meet industrial demands, this generator combines efficiency, durability, and advanced engineering, making it a trusted solution for various power needs. Below, we dive into the technical specifications and unique advantages of the GF500 generator.
Key Technical Specifications
Generator Details
- Model: HF500
- Prime Power: 500 kW
- Apparent Power: 687.5 kVA
- Standby Power: 550 kW
- Weight: 4500 kg
- Dimensions (L×W×H): 3900 × 1500 × 2000 mm
Engine Specifications
- Engine Model: 6M33D633E200
- Prime Power Output: 575 kW
- Standby Power Output: 633 kW
- Emission Standard: Guo II (China National Stage II)
- Manufacturer: Weichai
- Bore Diameter: 150 mm
- Stroke: 185 mm
- Speed: 1500 R/MIN
- Rated Fuel Consumption: 225 g/kWh
- Displacement: 19 liters
- Power Factor: cosΦ 0.8
Performance and Efficiency
-
High Power Output:
With a prime power rating of 500 kW and a standby capacity of 550 kW, this diesel generator is built to handle large-scale applications, making it ideal for industrial facilities, hospitals, and data centers. -
Advanced Engine Design:
The 6M33D633E200 engine is a testament to Weichai’s engineering prowess. Featuring a displacement of 19 liters and precise fuel consumption of 225 g/kWh, it delivers consistent and efficient performance, reducing operational costs. -
Reliable Emission Standards Compliance:
Certified under the Guo II emission standard, this generator minimizes environmental impact while maintaining optimal functionality. This is a crucial factor for industries adhering to strict environmental regulations. -
Durability and Longevity:
Built by Weichai, a leader in diesel engine manufacturing, the 6M33D633E200 engine ensures durability. The robust build and meticulous design offer extended operational life even under demanding conditions.
Company Introduction
Shandong Hongfan Power Technology Co., Ltd, located in the scenic city of Jinan, Shandong Province, is a rapidly growing enterprise in green energy and high-tech solutions. The company specializes in the production, sales, and technical services for diesel and gas generator sets and their parts, focusing on renowned domestic brands such as Jichai, Weichai, Shengdong, Zichai, and Sinotruk.
Our Strengths
Comprehensive Warehousing System
With two warehouses spanning over 2,000 square meters, the company ensures a fully stocked inventory of components, enabling quick response times and timely delivery to meet diverse customer needs.
Expert Technical Team
The company boasts a highly skilled technical team with over 15 key professionals experienced in engine assembly, generator set installation and commissioning, maintenance, and power station operations. The team is adept at executing medium and major repairs and on-site operations both domestically and internationally.
00001.
Product Offerings
· Jinan Diesel Engine Jichai 190 series, 6190 8190 12V190,16V190 diesel and gas engine
· Shengdong 500kw 700kw gas generator
· Weichai 6170Z 8170Z CW6200 CW8200 R6160Z WP12 and WP series
· Weichai Baudouin series,6m26 6m33 12m26 12m33 16m33 12m55 M26 M33 M55 Series
· Zichai Z6170 Z8170 6210 8210 LB8250 LC8250 ZC6200 Z6180 Z8180 Z6150 6300 8300
· Generator sets (20-2000KW) from leading domestic brands such as Jichai, Shengdong, Zichai, and Yuchai.
· Maintenance and repair services for 190 series engines.
· Power station operation and maintenance services.
Conclusion
The Weichai Baudouin 500KW diesel generator, powered by the 6M33D633E200 engine, is a robust, efficient, and eco-friendly solution tailored for industries requiring uninterrupted power. Its combination of superior engineering, compliance with emission standards, and high power output makes it a top choice for demanding applications.
For more details about installation, pricing, and customization options, contact us today to power your operations with confidence.
