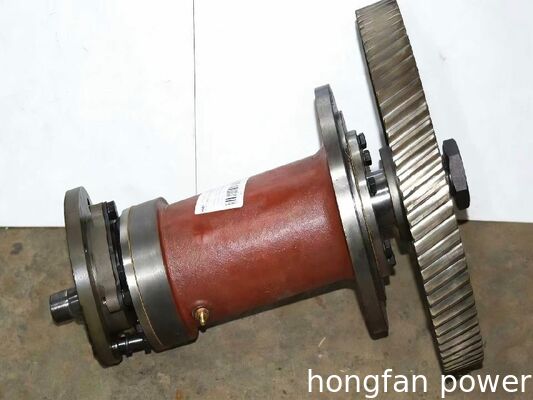

Zichai 12V170ZLD-3 diesel generator spare parts Driving gear driven gear Z6170.22-11

Large Image : Zichai 12V170ZLD-3 diesel generator spare parts Driving gear driven gear Z6170.22-11

Product Details:

Place of Origin:	CHINA
Brand Name:	Zichai
Certification:	CE
Model Number:	12V170

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	766
Packaging Details:	wooden cases
Delivery Time:	3 days
Supply Ability:	987

Contact Now

Detailed Product Description

Zichai 12V170 Engine Parts Spare Parts List

(Cooling water system), Cooling system, Pump nozzle (Fuel adjusting mechanism)
The thermostat/ Thermostat Temperature Controller		KSN-60-M
Manual fuel transfer pump Priming pump		16V170-50-300
O-shaped Circle O-Ring		38,7х3,55
Emergency diesel generator set)Spare parts order list for emergency diesel generator (ADG) and parking diesel generator (Harbor diesel generator set) (SDG) brands Z6170ZLD-2 manufacturer ZICHAI MACHINES CO., LTD / China Drawing: BC96201-POS-MM-M03	Cooling system, pump nozzle
Fuel filter coarse cleaning ADG SDG Сoarse mesh dual fuel filter		SBL25-00
Conical Compression ring Bevel compression ring		6170ZC.5-3A
Rectangular Compression Ring Rectangle compression ring		6170ZC.5-2A
Barrel-shaped compression ring Barrel compression ring		6170ZC.5-1A
Accessories for cylinder exhaust gaskets.Gasket sub-assy for exhaust exit of cylinder		Z6170.10.3
Accessories for corrugated pipe gaskets Accordion pipe gasket sub-assy		Z6170.10.4
Corrugated Pipe Accessories Accordion pipe sub-assy		Z6170.10.1A
Compressor end gasket Rear torus end gasket		Z6170.10-11
Compressor end gasket Rear torus end gasket		Z6170.10-17
Bearing seat stand		Z6170.22.2A-1
Bearing seat stand		Z6170.22.4
Bearing seat stand		Z6170.22.1A-1
Driven gear		Z6170.22-12
Driven gear		Z6170.22-12A
Bearing		Z6170.22.1A-2
Pin Pin		Z6170.22.3-1
Driving gear driven gear		Z6170.22-11
Driving gear driven gear		Z6170.22-11A
O-shaped O-ring O-sealing ring		GB/T3452.1-2005 128x3.55
Axile bush bearing sleeve		Z6170.22.2A-2
Filter Core Filter spindle		Z6170.19-2
Nozzle body		Z6170.19-3
Tightening nozzle cap Injector nozzle holder		Z6170.19.1-1A
Regulating gasket Adjusting gasket		Z6170.19.1-2
Regulating round gasket Adjusting washer		Z6170.19-4
Pin Pin		GB/T119.2-2000 3x6x8
Regulating round gasket Adjusting spring		Z6170.19-5
Spring seat stand		Z6170.19-6
Block that restricts promotion Lift range limitation blok		Z6170.19-7A
Nozzle pair Injector sub-assy		Z6170.19-2S
Clamping valve lining Delivery valve seat		V6T-0205-01
O-shaped O-ring O-sealing ring		V6T-0206
Volume Reducer Container reducer		V6T-0211
Regulating gasket Adjusting washer		V6T-0212-01
Delivery valve spring		В6Т-0503-01
Sealing strip High pressure gasket seal		V6T-0204-01
Valve pair Delivery valve assembly		F901-00
Valve lining Delivery valve down gasket		V6T-0201
Plunger pair Plunger assemble		ZS1104-00
Regulating gasket Pretravel adjesting gasket		V6T-0011
Adjusting gear wheel Adjusting gear		B6T-0003
Steel Wire Collar Steel collar		B6T-0004
Upper spring support Upper spring seat		B6T-0005
Plunger spring		B6T-0002
Lower spring support Lower apring seat		V6T-0306
Vane wheel		762D-21C-003
Hydraulic seal Water seal sub-assy		SB-20A or II F20
Gaskets		762D-21C-006
Pump shaft		762D-21C-007
Bearing		762D-21C-005
Key Key		GB/T1096-2003 C5x16
Key Key		GB/T1096-2003 C5x20
Bearing Pedion sealing rolling bearing		GB/T276-1994 160504
Bearing Pedion sealing rolling bearing		GB/T276-1994 160304
Pneumatic motor Motor assembly		TMY9QDB
