Zichai Z8180ZLD Diesel Marine engine injection pump BHT8P9

Zichai Z8180ZLD-9A — Major Overhaul Kit Parts List

Engine: Z8180ZLD-9A (8-cylinder, 180 mm bore — NOT 170 series)

Serial No.: 21LD0795 (Sister Units: 21LD0794, 21LD0793)

Manufacturing Date: April 2021

No. Part / Description Qty Part No. (To Be Confirmed Against Nameplate) Unit Price & Currency Lead Time

1. Piston — 8 pcs

2. Piston Ring Set — 8 sets

3. Cylinder Liner — 8 pcs

4. Main Bearing Set — 1 set

5. Connecting Rod Bearing — 8 pcs

6. Full Overhaul Gasket Set — 1 set

7. Oil Seal Set — 1 set

8. Fuel Injector — 8 pcs

9. Intake Valve — 8 pcs

10. Exhaust Valve — 8 pcs

11. Valve Guide — 16 pcs

12. Valve Seat Insert (Intake) — 8 pcs

13. Valve Seat Insert (Exhaust) — 8 pcs

14. Valve Spring — 16 pcs

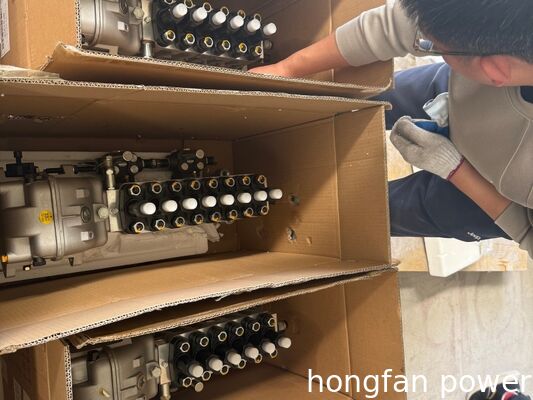

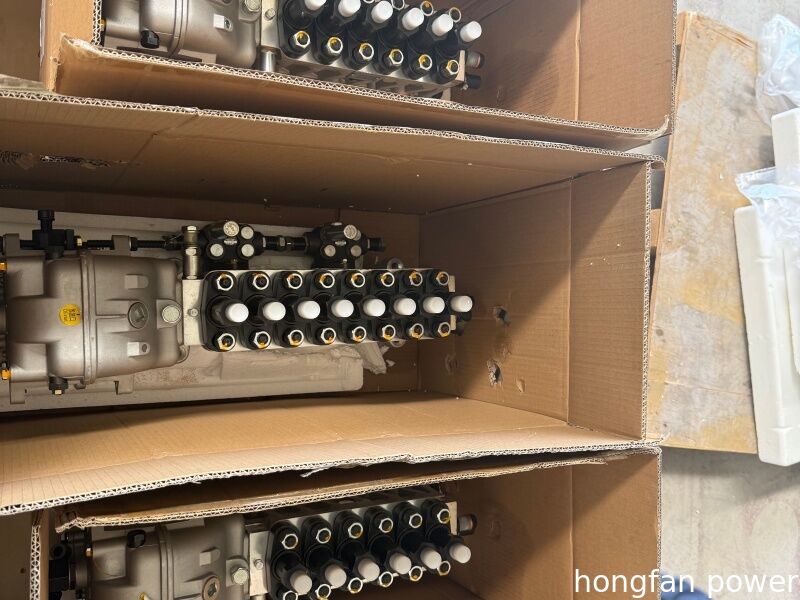

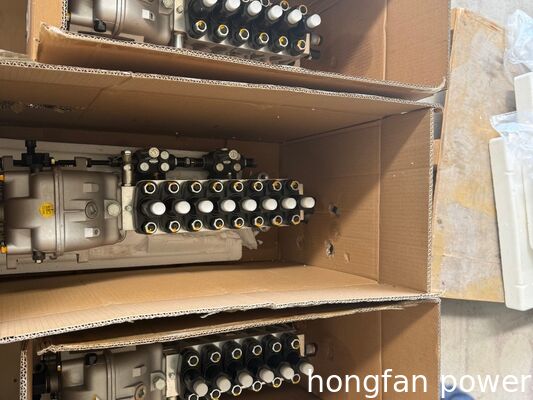

15. Fuel Injection Pump Assembly — 1 pc
Part No.: BHT8P9, No. 200978120 (Marking: IMO-18-01)

16. Air Cooler — 1 pc
Part No.: KLQ21H
