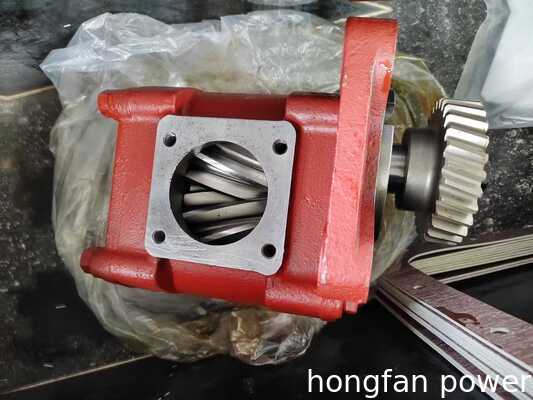

OIL PUMP ASSEMBLY 12VB.17.00C Jichai G12V190PZL diesel engine used in drilling rig
| Place of Origin | CHINA |
|---|---|
| Brand Name | jichai |
| Certification | ISO9001 |
| Model Number | G12V190PZL |
| Minimum Order Quantity | 1 |
| Price | 3478 |
| Packaging Details | wooden cases |
| Supply Ability | 234 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
Series 2000 Diesel Engines
Performance Parameters
| Model | Rated Power (kW/hp) | Rated Speed (r/min) | Specific Fuel Consumption (g/kW·h) | Specific Oil Consumption (g/kW·h) | Overall Dimensions (L×W×H mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|
| BG12V190ZL | 900 / 1500 | 800 / 1500 | ≤209.4 | ≤1.6 | 3160 × 1770 × 2400 | 5300 |
| BG12V190PZL | 900 / 1500 | 800 / 1500 | ≤209.4 | ≤1.6 | 4374 × 1740 × 2400 | 8100 |
| BG12V190ZL-3 | 810 / 1300 | 730 / 1300 | ≤209.4 | ≤1.6 | 3160 × 1770 × 2400 | 5300 |
| BG12V190PZL-3 | 810 / 1300 | 730 / 1300 | ≤209.4 | ≤1.6 | 4374 × 1740 × 2400 | 8100 |
| G12V190ZL | 900 / 1500 | 800 / 1500 | ≤209.4 | ≤1.6 | 2692 × 1560 × 2070 | 5300 |
| G12V190PZL | 900 / 1500 | 800 / 1500 | ≤209.4 | ≤1.6 | 3860 × 2040 × 2678 | 8100 |
| G12V190ZL-3 | 810 / 1300 | 730 / 1300 | ≤209.4 | ≤1.6 | 2692 × 1560 × 2070 | 5300 |
| G12V190PZL-3 | 810 / 1300 | 730 / 1300 | ≤209.4 | ≤1.6 | 3860 × 2040 × 2678 | 8100 |
| G12V190ZL-1 | 740 / 1200 | 660 / 1200 | ≤209.4 | ≤1.6 | 2692 × 1560 × 2070 | 5300 |
| G12V190PZL-1 | 740 / 1200 | 660 / 1200 | ≤209.4 | ≤1.6 | 3860 × 2040 × 2678 | 8100 |
| G12V190ZL-2 | 600 / 1000 | 540 / 1000 | ≤209.4 | ≤1.6 | 2692 × 1560 × 2070 | 5300 |
| G12V190PZL-2 | 600 / 1000 | 540 / 1000 | ≤209.4 | ≤1.6 | 3860 × 2040 × 2678 | 8100 |
| G8V190ZL | 600 / 1500 | 540 / 1500 | ≤213.5 | ≤2.7 | 1802 × 1560 × 2070 | 4300 |
| G8V190PZL | 600 / 1500 | 540 / 1500 | ≤213.5 | ≤2.7 | 3280 × 2040 × 2678 | 6750 |
| G8V190ZL-3 | 510 / 1300 | 460 / 1300 | ≤213.5 | ≤2.7 | 1802 × 1560 × 2070 | 4300 |
| G8V190PZL-3 | 510 / 1300 | 460 / 1300 | ≤213.5 | ≤2.7 | 3280 × 2040 × 2678 | 6750 |
| G8V190ZL-1 | 470 / 1200 | 425 / 1200 | ≤213.5 | ≤2.7 | 1802 × 1560 × 2070 | 4300 |
| G8V190PZL-1 | 470 / 1200 | 425 / 1200 | ≤213.5 | ≤2.7 | 3280 × 2040 × 2678 | 6750 |
| G8V190ZL-2 | 390 / 1000 | 350 / 1000 | ≤213.5 | ≤2.7 | 1802 × 1560 × 2070 | 4300 |
| G8V190PZL-2 | 390 / 1000 | 350 / 1000 | ≤213.5 | ≤2.7 | 3280 × 2040 × 2678 | 6750 |
Main Technical Data
| Item | Specification |
|---|---|
| No. & Arrangement of Cylinders | 12, 60° V-type |
| Type | Four-stroke, water-cooled, turbocharged & aftercooled, direct injection |
| Bore | 190 mm |
| Stroke | 210 mm |
| Total Displacement | 71.45 L (or 47.6 L depending on variant) |
| Compression Ratio | 14 : 1 |
| Direction of Rotation | - Counter-clockwise (models without “R”) - Clockwise (models with “R”) (Facing flywheel) |
| Starting Method | Air motor or electric motor |
| Lubrication Method | Pressure + splash lubrication |
