X6231.213W engine bracket for 6M33 engine genuine Weichai Baudouin engine parts

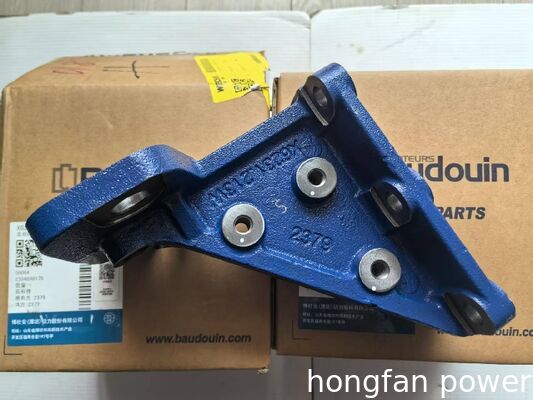

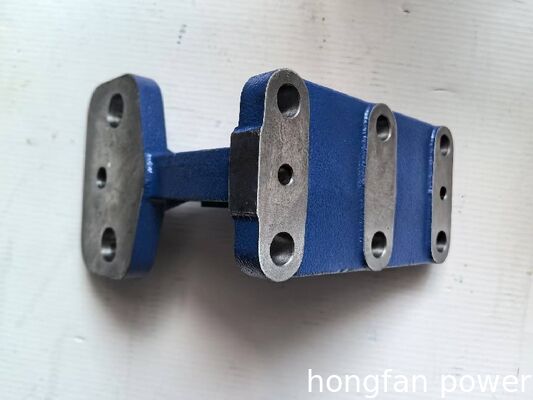

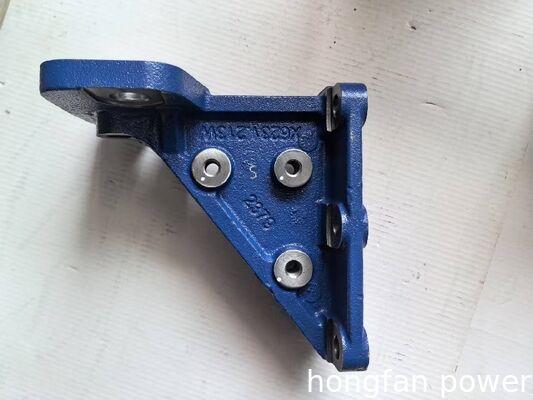

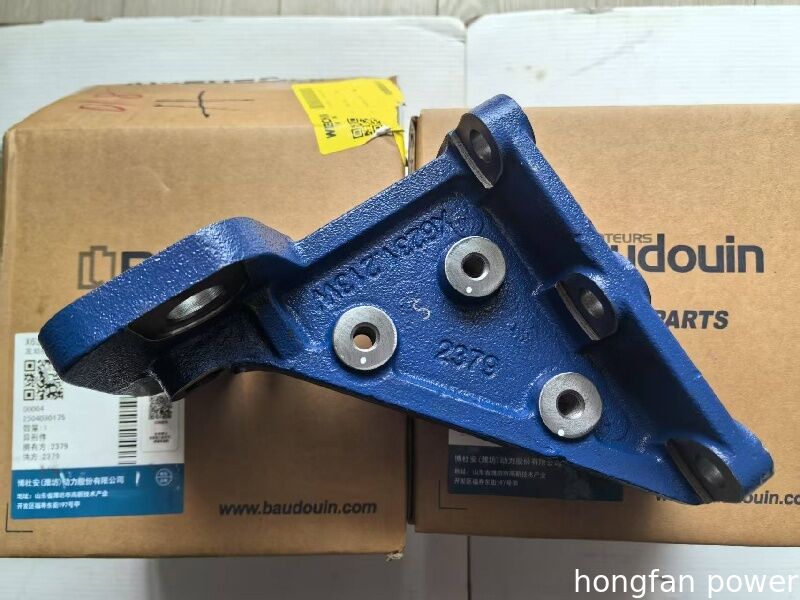

Large Image : X6231.213W engine bracket for 6M33 engine genuine Weichai Baudouin engine parts

Product Details:

Place of Origin:	CHINA
Brand Name:	weichai
Certification:	CE
Model Number:	6M33

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	3478
Packaging Details:	wooden cases
Supply Ability:	234

Contact Now

Detailed Product Description

Weichai M33 Series Engine Technical Parameter

Item	Description
Model No.	6M33C
Speed	Speed
Cooling Cylinder	Water-Cooled
Intake Pressure Impulse	Naturally Aspirated
Piston Movement	Reciprocating
Fuel	Diesel
Number of Strokes	Four-Stroke
Cylinder Arrangement	L Type
Number of Cylinders	6-Cylinder
Type	External Combustion Engine
Oil Consumption Rate	≤0.6 g/kW·h
Noise	≤99 dB(A)
Idle Speed	600 ± 50 r/min
Torque Reserve	25–35%
Minimum Fuel Consumption Rate	191 g/kW·h
Transport Package	Wooden Case
Specification	1447 × 960 × 1211 mm
Trademark	Weichai
Origin	China
HS Code	8408100000
Production Capacity	10,000 pcs/year

X6231.213W engine bracket for 6M33 engine genuine Weichai Baudouin engine parts 0

Product Description

Weichai 6M33 Series Marine Diesel Engine (404–750 kW)

Parameters Table

Parameter	Value	Parameter	Value
Type	Four-stroke, water-cooled, in-line/V-type, turbocharged and aftercooled	Number of Cylinders	6 / 12
Bore & Stroke	150 × 185 mm	Displacement	19.6 L / 39.2 L
Oil Consumption Rate	≤0.8 g/kW·h	Noise	≤100 dB(A)
Min. Fuel Consumption	190 g/kW·h	Idle Speed	650 ± 30 r/min
Torque Reserve	20–30%	Rotation	Counter-clockwise (Facing flywheel)

Dimensions & Weight

Model	Dimensions (L×W×H)	Net Weight
L6	1870 × 1000 × 1400 mm	2390 kg
V12	2210 × 1418 × 1554 mm	3900 kg

Model Portfolio Table

6M33 Series

Series	Model	Aspiration	Rated Power (kW/PS)	Speed (r/min)	Fuel System	Emission	Rating
6M33	6M33C550-15	TA	404 / 550	1500	Mechanical Pump	IMO	P1
	6M33C600-18	TA	441 / 600	1800	Mechanical Pump	IMO	P1
	6M33C650-18	TA	478 / 650	1800	Mechanical Pump	IMO	P1
	6M33C700-18	TA	515 / 700	1800	Mechanical Pump	IMO	P1
	6M33C750-18	TA	551 / 750	1800	Mechanical Pump	IMO	P2
	6M33C750-18E211	TA	552 / 750	1800	HPCR	IMO	P1
	6M33C830-18E211	TA	610 / 830	1800	HPCR	IMO	P2
	6M33C912-19E211	TA	670 / 912	1900	HPCR	IMO	P3
	6M33C1020-20E211	TA	750 / 1020	2000	HPCR	IMO	P4

12M33 Series

Series	Model	Aspiration	Rated Power (kW/PS)	Speed	Fuel System	Emission	Rating
12M33	12M33C1000-15	TA	735 / 1000	1500	Mechanical Pump	IMO	P1
	12M33C1200-18	TA	882 / 1200	1800	Mechanical Pump	IMO	P1
	12M33C1300-18	TA	956 / 1300	1800	Mechanical Pump	IMO	P1
	12M33C1400-18	TA	1029 / 1400	1800	Mechanical Pump	IMO	P1
	12M33C1500-18	TA	1103 / 1500	1800	Mechanical Pump	IMO	P2
	12M33C1400-18E211	TA	1030 / 1400	1800	HPCR	IMO	P1
	12M33C1500-18E211	TA	1104 / 1500	1800	HPCR	IMO	P2
	12M33C1650-18E211	TA	1214 / 1650	1800	HPCR	IMO	P3

16M33 Series

Series	Model	Aspiration	Rated Power (kW/PS)	Speed	Fuel System	Emission	Rating
16M33	16M33C1750-16E211	TA	1287 / 1750	1600	HPCR	IMO	P1
	16M33C1850-16E211	TA	1361 / 1850	1600	HPCR	IMO	P2
	16M33C1950-18E211	TA	1434 / 1950	1800	HPCR	IMO	P1
	16M33C2100-18E211	TA	1545 / 2100	1800	HPCR	IMO	P2

Product Offerings
Jinan Diesel Engine: Jichai 190 series, 6190, 8190, 12V190, 16V190 diesel and gas engine.
Shengdong Gas Generator: 500kW, 700kW gas generators.
Weichai Engines: 6170Z, 8170Z, CW6200, CW8200, R6160Z, WP12, and WP series.
Weichai Baudouin Series: 6M26, 6M33, 12M26, 12M33, 16M33, 12M55, M26, M33, M55 Series.
Zichai Engines: Z6170, Z8170, 6210, 8210, LB8250, LC8250, ZC6200, Z6180, Z8180, Z6150, 6300, 8300.
Generator Sets: (20-2000KW) from leading domestic brands such as Jichai, Shengdong, Zichai, and Yuchai.
