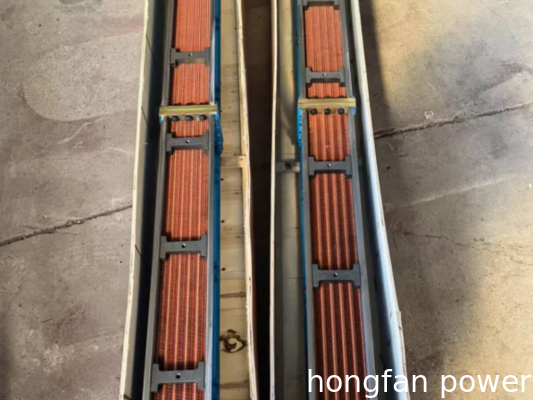

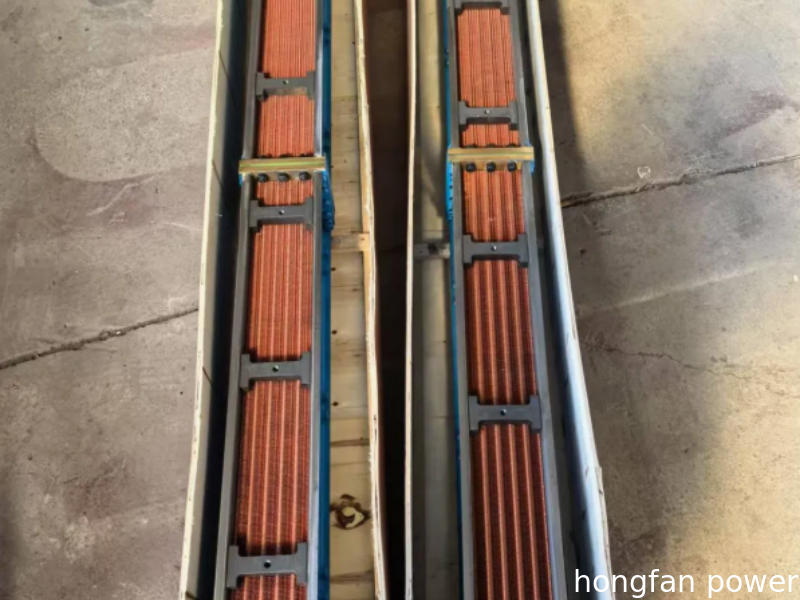

Weichai CW12V200ZC model oil cooler marine diesel engine Spare parts supplier

Weichai CW12V200ZC model oil cooler marine diesel engine Spare parts supplier
Weichai CW12V200ZC model oil cooler marine diesel engine Spare parts supplier Weichai CW12V200ZC model oil cooler marine diesel engine Spare parts supplier Weichai CW12V200ZC model oil cooler marine diesel engine Spare parts supplier Weichai CW12V200ZC model oil cooler marine diesel engine Spare parts supplier

Large Image :  Weichai CW12V200ZC model oil cooler marine diesel engine Spare parts supplier

Product Details:
Place of Origin: CHINA
Brand Name: weichai
Certification: CE
Model Number: CW12V200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 3478
Packaging Details: wooden cases
Supply Ability: 200 pcs month
Contact Now
Detailed Product Description

Weichai CW12V200 series marine diesel engine (1080-1440kW)

Parameters Table

Type Four-stroke, water cooled, in-line,/V type turbocharged and intercooled Number of cylinders 6/8/12/16
Bore & stroke 200×270 (mm) Displacement 50.892 L /67.856 L /101.784 L /135.68 L
Oil consumption rate ≤0.8 g/kW.h Noise ≤110 dB(A)
Minimum fuel consumption rate 195 g/kW.h Idle speed 40% rated speed
Rotation
(facing the flywheel)
Clockwise
Dimensions (L×W×H) / net weight
L6:2820×1465×2488(mm) / 6500kg
L8:3540×1480×2531(mm) / 7800kg
V12:3900×1700×2520(mm) / 10900kg
V16:4633×1700×2745(mm) / 13680kg

Model Portfolio Table

Series Model
Rated power
kW/Ps
Rated speed
r/min
 Fuel and configuration Emission Power rating
Diesel oil 180 cst HFO
CW200 CW6200ZC-37 594/808 1000 Integral pump None IMO P1
XCW6200ZC-51 600/816 750 Monomer pump Monomer pump IMO P1
CW6200ZC 600/816 1000 Integral / monomer pump Monomer pump IMO P1
XCW6200ZC-4 648/882 900 Integral / monomer pump Monomer pump IMO P1
XCW6200ZC 698/950 1000 Integral / monomer pump Monomer pump IMO P1
XCW6200ZC-1 720/980 1000 Integral / monomer pump Monomer pump IMO P1
XCW6200ZC-10 810/1102 1000 Integral / monomer pump None IMO P1
XCW6200ZC-9 840/1143 1000 Integral pump None IMO P1
WHM6200C1225-1 900/1225 1000 Integral / monomer pump None IMO P1
XCW8200ZC-12 890/1210 1000 Integral / monomer pump Monomer pump IMO P1
XCW8200ZC 928/1263 1000 Integral / monomer pump Monomer pump IMO P1
XCW8200ZC-1 960/1306 1000 Integral / monomer pump Monomer pump IMO P1
XCW8200ZC-13 992/1350 1000 Integral / monomer pump Monomer pump IMO P1
XCW8200ZC-10 1030/1400 1000 Integral / monomer pump None IMO P1
XCW8200ZC-2 1104/1500 1000 Monomer pump None IMO P1
CW12V200ZC-2 1080/1468 900 Monomer pump Monomer pump IMO P1
XCW12V200ZC-4 1296/1763 900 Monomer pump Monomer pump IMO P1
CW12V200ZC 1200/1633 1000 Monomer pump Monomer pump IMO P1
XCW12V200ZC 1392/1894 1000 Monomer pump Monomer pump IMO P1
XCW12V200ZC-1 1440/1960 1000 Monomer pump Monomer pump IMO P1
CW16V200ZC-6 1600/2177 1000 Monomer pump Monomer pump IMO P1
CW16V200ZC 1760/2395 1000 Monomer pump None IMO P1

Remark: Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.

Product description

Safe and reliable

  • High strength engine block, crankshaft and connecting rod structure, compact structure, high safety factor and good reliability
  • Crankshaft receives surface hardening treatment, the fatigue strength and wear resistance are good, and the service life is long
  • Replace the filter without stopping

Strong power

  • The high-pressure oil pump, turbocharger, injector, and air valve are optimally matched, with wide power coverage and large torque reserve
  • Low-speed and high-torque design ensures the quick response and fast speed increase of the engines

Economical and fuel-efficient

  • Low consumption and high efficiency: the minimum fuel consumption rate can reach 195g/kW•h, and the engine oil consumption rate is lower than 0.8g/kW•h
  • Customized design for lower fuel consumption

Comfortable and environmentally friendly

  • Large stiffness damping leaf spring shock absorber is adopted, so that vibration is small and noise is low
  • IMO II emission requirements are met

Strong practicability

  • There are various fuel options, for example, diesel oil, heavy oil, natural gas and bio-oil

Parameters Table

Type Four-stroke, water cooled, in-line, turbocharged and aftercooled Number of cylinders 12
Bore & stroke 170×220(mm) Displacement 54.48 L
Oil consumption rate ≤0.3 g/kW.h Noise ≤111dB(A)
Minimum fuel consumption rate ≤200 g/kW.h Idle speed 650±30 r/min
Torque reserve ≥15%
Rotation
(facing the flywheel)
Counter-clockwise
Dimensions (L×W×H) 2256×1331×1856 (mm) Net weight 5300 kg

Remark: Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.

Model Portfolio Table

Series Model Aspiration Rated power kW/Ps
Speed
r/min
 Fuel system Emission Power rating
12WH17* 12WH17C1564-2 TA 1150/1564 1200 HPCR IMO P1
12WH17C1700-5 TA 1250/1700 1500 HPCR IMO P1
12WH17C1972-5 TA 1450/1972 1500 HPCR IMO P1
12WH17C2203-5 TA 1620/2203 1500 HPCR IMO P2

Remark: The delivery date of products marked with * shall be subject to the reply of the manufacturer. Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.

Product description

Safe and reliable

  • High strength engine block, crankshaft and connecting rod, the large-flow lubrication system with filtering before cooling and the high-efficiency cooling system, and the design of less tubes and one block and one head ensure that the overhaul period of diesel engine is not less than 20000h; Strong power
  • Replace the filter without stopping

Strong power

  • Through the reasonable matching of electronical-controlled high-pressure common rail system, turbocharger, injector, air duct and combustion chamber, the torque reserve of the whole engine reaches more than 15%, and the torque of normal speed is greater than the calibration point torque, which make the engines meet the actual use needs of users

Economical and fuel-efficient

  • The electronical-controlled unit accurately controls the fuel injection timing and quantity
  • Large air intake, sufficient combustion, and wide economic operation range
  • Customized design for lower fuel consumption

Comfortable and environmentally friendly

  • The high-pressure common rail system with ultra-high injection pressure and mushroom-shape valve type deflation valve turbocharger are adopted, giving consideration to both economy and emission. The economic operation range is wide (700~1200r/min), the minimum fuel consumption rate can reach 188g/kW•h, and the emission can meet IMO requirements

Strong practicability

  • LCD Internet instrument can be selected to monitor the speed, water temperature, oil temperature, oil pressure and other parameters of a diesel engine in real time. When the parameters of the diesel engine exceed the limit, it can automatically alarm and stop the engine, and the addition of stormy wave mode ensures that the ship engine will not stop at critical moments such as stormy wave

Parameters Table

Type Four-stroke, water cooled, in-line, turbocharged and aftercooled Number of cylinders 8
Bore & stroke 170×222 (mm) Displacement 40.31 L
Oil consumption rate ≤0.3 g/kW.h Noise ≤111 dB(A)
Minimum fuel consumption rate 190 g/kW.h Idle speed 500 r/min
Starting system Electrical
Rotation
(facing the flywheel)
 Counter-clockwise
Dimensions (L×W×H) 2917×1147×1805 (mm) Net weight 4600 kg

Remark: Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.

Model Portfolio Table

Series Model Aspiration Rated power kW/Ps
Speed
r/min
 Fuel system Emission Power rating
8WH17* 8WH17C900-1 TA 662/900 1000 HPCR IMO P1
8WH17C952-1 TA 700/952 1000 HPCR IMO P1
8WH17C1000-2 TA 735/1000 1200 HPCR IMO P1
8WH17C1156-2 TA 850/1156 1200 HPCR IMO P1
8WH17C1200-3 TA 882/1200 1350 HPCR IMO P1
8WH17C1251-5 TA 920/1251 1500 HPCR IMO P1
8WH17C1360-5 TA 1000/1360 1500 HPCR IMO P1

Remark: Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.

Product description

Safe and reliable

  • High strength engine block, crankshaft and connecting rod, the large-flow lubrication system with filtering before cooling and the high-efficiency cooling system, and the design of less tubes and one block and one head ensure that the overhaul period of diesel engine is not less than 20000h
  • Replace the filter without stopping

Strong power

  • Through the reasonable matching of electronical-controlled high-pressure common rail system, turbocharger, injector, air duct and combustion chamber, the torque reserve of the whole engine reaches more than 20%, and the torque of normal speed is greater than the calibration point torque, which make the engines meet the actual use needs of users

Economical and fuel-efficient

  • The electronical-controlled unit accurately controls the fuel injection timing and quantity
  • Large air intake, sufficient combustion, and wide economic operation range
  • Customized design for lower fuel consumption

Comfortable and environmentally friendly

  • The high-pressure common rail system with ultra-high injection pressure and mushroom-shape valve type deflation valve turbocharger are adopted, giving consideration to both economy and emission. The economic operation range is wide (700~1200r/min), the minimum fuel consumption rate can reach 190g/kW•h, and the emission can meet IMO requirements

Strong practicability

  • LCD Internet instrument can be selected to monitor the speed, water temperature, oil temperature, oil pressure and other parameters of a diesel engine in real time. When the parameters of the diesel engine exceed the limit, it can automatically alarm and stop the engine, and the addition of stormy wave mode ensures that the ship engine will not stop at critical moments such as stormy wave

Parameters Table

Type Four-stroke, water cooled, in-line, turbocharged and aftercooled Number of cylinders 6
Bore & stroke 170×222 (mm) Displacement 30.22 L
Oil consumption rate ≤0.3 g/kW.h Noise ≤111 dB(A)
Minimum fuel consumption rate 190 g/kW.h Idle speed 500 r/min
Starting system Electrical Rotation
(facing the flywheel) 		Counter-clockwise
Dimensions (L×W×H) 2355×1220×1615 (mm) Net weight 3500 kg

Remark: Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.

Model Portfolio Table

Series Model Aspiration Rated power kW/Ps Speed
r/min		 Fuel system Emission Power rating
6WH17 6WH17C900-3 TA 661/900 1350 HPCR IMO P1
6WH17C900-5 TA 661/900 1500 HPCR IMO P1
6WH17C1000-5 TA 735/1000 1500 HPCR IMO P1

Remark: Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.

Product description

Safe and reliable

  • High strength engine block, crankshaft and connecting rod, the large-flow lubrication system with filtering before cooling and the high-efficiency cooling system, and the design of less tubes and one block and one head ensure that the overhaul period of diesel engine is not less than 20000h
  • Replace the filter without stopping

Strong power

  • Through the reasonable matching of electronical-controlled high-pressure common rail system, turbocharger, injector, air duct and combustion chamber, the torque reserve of the whole engine reaches more than 20%, and the torque of normal speed is greater than the calibration point torque, which make the engines meet the actual use needs of users

Economical and fuel-efficient

  • The electronical-controlled unit accurately controls the fuel injection timing and quantity
  • Large air intake, sufficient combustion, and wide economic operation range
  • Customized design for lower fuel consumption

Comfortable and environmentally friendly

  • The high-pressure common rail system with ultra-high injection pressure and mushroom-shape valve type deflation valve turbocharger are adopted, giving consideration to both economy and emission. The economic operation range is wide (700~1200r/min), the minimum fuel consumption rate can reach 190g/kW•h, and the emission can meet IMO requirements

Strong practicability

  • LCD Internet instrument can be selected to monitor the speed, water temperature, oil temperature, oil pressure and other parameters of a diesel engine in real time. When the parameters of the diesel engine exceed the limit, it can automatically alarm and stop the engine, and the addition of stormy wave mode ensures that the ship engine will not stop at critical moments such as stormy wave

Parameters Table

Type Four-stroke, water cooled, in-line, dual stage turbocharged and intercooled Number of cylinders 6
Bore & stroke 127×165 (mm) Displacement 12.54 L
Oil consumption rate ≤0.3 g/kW.h Noise ≤100 dB(A)
Minimum fuel consumption rate 198 g/kW.h Idle speed 700 r/min
Rotation
(facing the flywheel)		 Counter-clockwise Net weight 1450 kg
Dimensions (L×W×H) 1670×1100×1075 (mm)
