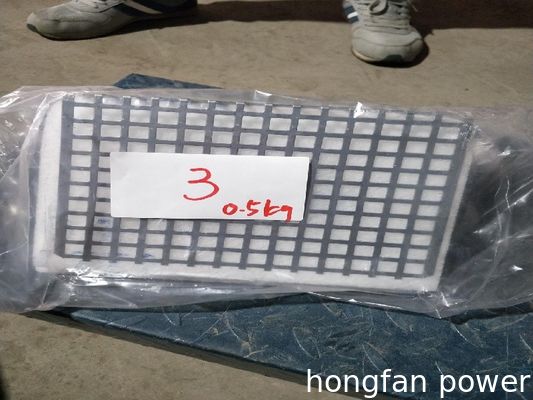

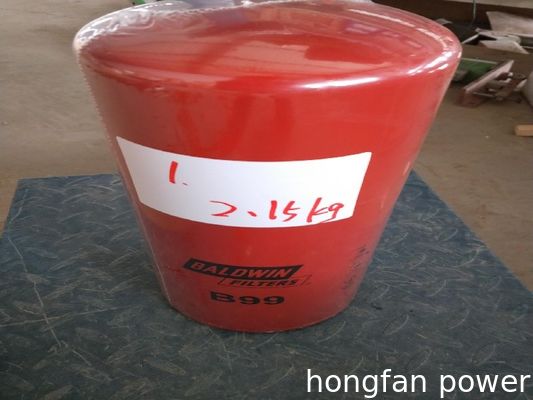

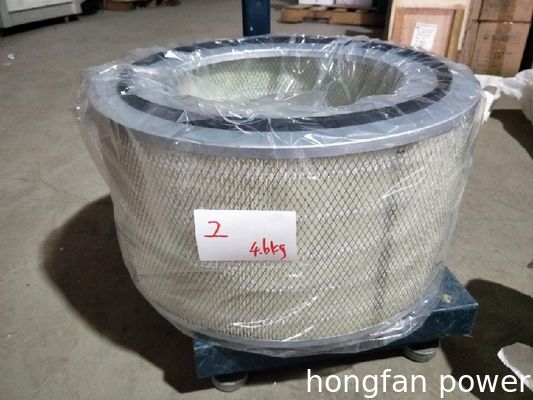

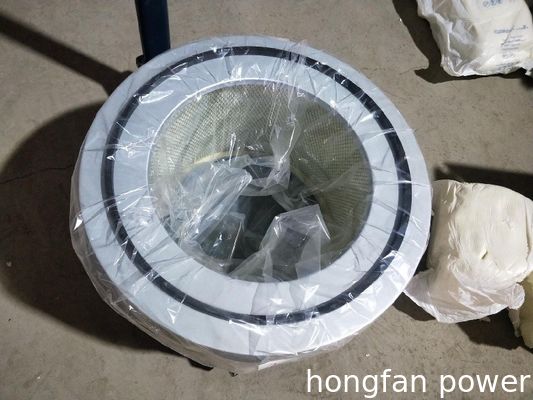

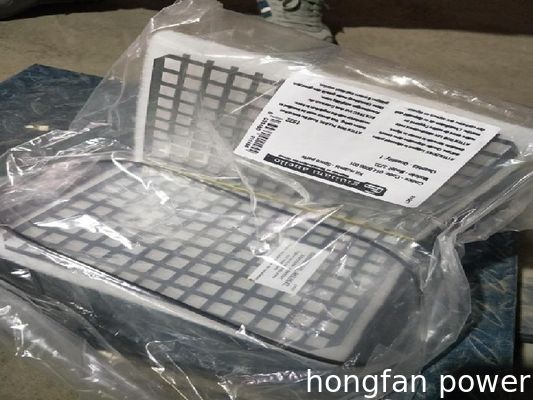

3012.36.30 air filterr jichai brand H16V190ZLT 1000KW 1MW original gas genset spare parts high quality factory
| Place of Origin | CHINA |
|---|---|
| Brand Name | jichai |
| Certification | CE |
| Model Number | H16V190 |
| Minimum Order Quantity | 1 |
| Price | 3478 |
| Delivery Time | 30 days |
| Supply Ability | 200 pcs month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
1000KW Natural gas generating set technical specification and quotation
1.Main technical specification of Natural gas gensets
| Model of generating sets | 1000GF-TK |
| Model of engine | H16V190ZLT-2 |
| Model of alternator | 1FC6506-4LA42 |
| Rated capacity | 1250KVA |
| Rated power | 1000KW |
| Continuous power | 850KW |
| Rated speed | 1000 r/min. |
| CH4 Requirement | ≥70% |
| H2S Requirement | ≤15ppm |
| Gas pressure | ≥7kpa |
| H2O |
no liquid state water vapour in natural gas
|
| Rated voltage | 400V |
| Rated frequency | 50Hz |
| Rated power factor | 0.8 |
| Supply method | 3 phases 4 lines |
| Excitation method | Brushless |
| Starting method | 24V DC starter 24V or Air motor |
| Cooling method | Close |
| Speed modulate method | Electronic control |
| Net weight kg | 21000kg |
| Overall dimension L×B×H(mm) | 5920×2180×2200(mm) |
2. Main electrical performance data
|
Voltage |
Stable regulating rate | ±2.5% |
| Instantaneous regulating rate | ≤±20% | |
| Recovery time | ≤2s | |
| Fluctuation | ≤1% | |
|
Frequency |
Stable regulating rate | 0～5% |
| Instantaneous regulating rate | ≤±10% | |
| Recovery time | 7s | |
| Fluctuation | ≤1% |
3. Main technical data of engine
| Model of engine | H16V190ZLT-2 |
| Rated power/speed | 1200KW/1000rpm |
| Overall dimension L×B×H | 3830×2060×2315(mm) |
| Net weight | 13000kg |
| Specific oil consumption | ≤1.0g/KW.h |
| Number and layout of cylinders | 16, 60° V型 |
| Type |
Four stroke, water cooled, turbocharged and aftercooled, spark plug ignition
|
| Bore | 190mm |
| Stroke | 215mm |
| Total displacement | 97.53L |
| Compression ratio | 10:1 |
| Direction of rotation (facing to end) |
Counter-Clockwise |
| Lubricating method |
Pressure and splash lubrication |
