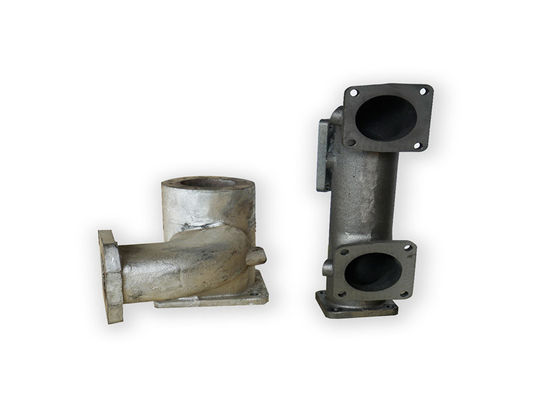

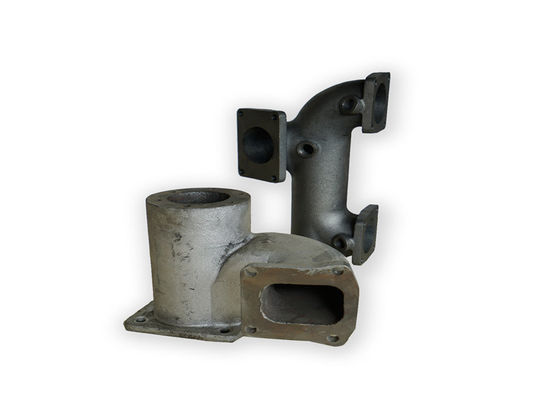

Z12VB.09.02A exhaust manifold of PZ12V190B Z12V190B G12V190PZL ship engine jinan diesel engine chidong CNPC JICHAI Power

Large Image : Z12VB.09.02A exhaust manifold of PZ12V190B Z12V190B G12V190PZL ship engine jinan diesel engine chidong CNPC JICHAI Power

Product Details:

Place of Origin:	China
Brand Name:	jichai
Certification:	ce
Model Number:	12V190

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	600usd
Packaging Details:	wooden cases
Delivery Time:	30 days
Supply Ability:	200 pcs month

Contact Now

Detailed Product Description

Rated Voltage:	220V/380V (optional)	Type:	Four Cycle; V Type; 12 Cylinder
Cooling Method:	Water Cooling	Starting System:	Electric System
Generator Type:	Trailer Generator Set	Power:	800kW
Manufacturer:	Jinan Diesel Engine Co.,Ltd	Hs Code:	8502120000
Power Factor:	0.8

G12V190PZL DIESEL ENGINE PARTS LIST:

1. Z12VB.01.00 CYLINDER BLOCK ASSEMBLY

2. 12VB.02.00 CRANKSHAFT ASSEMBLY

3. 12VB.03.00 CYLINDER HEAD ASSEMBLY

4. 12VB.04.00 OIL SUMP

5. Z12VB.05.00 PISTON AND CONNECTING ROD

6. Z12VB.06.00 CAMSHAFT AND GEAR TRAIN

7. 12VB.07.00 TORSIONAL VIBRATION DAMPER

8. Z12VB.08.00 INTAKE MANIFOLD

9. Z12VB.09.00 EXHAUST MANIFOLD

10. 12VB.10.00 FUEL FILTER

11. 12VB.11.00 Rotot fuel feed pump

12. Z12V.12.00 Injection Pump

13. Z12V.13.00 Mechanical Governor

14. 12VB.14.00A Fuel line

15. 12VB.15.00 Fuel injection pump transmission

16. 12VB.16.00E Injector

17. 12V.17.00C Oil pump

18. 12VB.18.00B Oil filter

19. 12VB.19.00 Centrifugal filter

20. Z12VB.20.00B Lubricationg piping

21. 12VB.21.00 Oil cooler

22. 12VB.22.00 Water pump

23. Z12VB.24.00 Turbo-charged engine cooling line

24. 12V.27.00 After-cooler assembly

25. 12V.29.00 Hand priming pump assembly

26. 12VB.32.00D Instrument panel assembly

27. 12V.33.00B Tachometer panel assembly

28. 12VB.34.00A Low-oil-pressure shut-down device

29. 12VB.35.00 Controlling device

30. 12VB.36M.00 Air filter assembly

31. 12VB.37.00 Over-speed protection device

32. 12VB.28.00 Radiator

33.12VB.39.00 Fan

34. PZ12VB.40.00 Base frame

35. 12VB.44.00 Coupling clutch

36. 12VB.45.00A Air filter bracket

37. 12VB.46.00FB Air starting system

38. 12VB.46.00A Electric starting system

39. 12VB.47.00 Radiator bracket

40.12VB.48.00 Oil pump bracket

41. 12VB.54.00C Pre-supplying oil pump

42. 12VB.55P.00 Coupling clutch

43. 122.57.00 Pneumatic remote control

44. 20GJ.00EA Turbocharger

Z12VB.09.02A exhaust manifold of PZ12V190B Z12V190B G12V190PZL ship engine jinan diesel engine chidong CNPC JICHAI Power 1

Battery 12V 150AH
Starter Motor 7MY11QDQ
Air Filter Element 190 Special
Oil Filter Element 12VB.18.10B
Fuel Valve Z12V.12.20
Fuel Valve Spring Z12V12.03
Fuel Valve Shim Z12V.12.01A
Fuel Line Flexible Hose 12VB.14.220A
Oil Pressure Gauge Z12VB.32.19
Electronic Tachometer ZD85F-A
Cylinder Head Assembly 12VB.03.00B
Rocker Arm Assembly 12VB.03
Rocker Arm Shim 12VB.03.51
Rocker Arm Screw 12VB.03.04
Rocker Arm Screw 12VB.03.09A
Intake Manifold Gasket 12VB.08.10.16
Intake Branch Gasket 12VB.08.10.14
Exhaust Manifold Gasket Z12V.09.47
Exhaust Manifold Gasket Z12VB.09.13A
Bellows Bolt Z12VB.09.16
Branch Bellows Z12VB.09.30
Exhaust Manifold Bellows Z12VB.09.10A
Bellows Reducer Z12VB.09.20A
Bellows Gasket Z12VB.09.70
Bellows Gasket Z12VB.09.50
Bellows Gasket Z12VB.09.60
Exhaust Branch Gasket Z12VB.09.40
Exhaust Pipe Bolt 20GJ.30.12A
Upper Cylinder Head Cover Gasket
Lower Cylinder Head Cover Gasket
190 Diesel Engine Water Pump 12VB.22.00B
Water Pump Mechanical Seal SB-28
Tensioner Assembly 12VB.39.40.16
Manual Throttle Assembly Z12V.13.00
Start Button 12VB.46.130F
Generator Voltage Regulator Board SX460
Generator Voltage Regulator Board SX440
