marine diesel generator set 64KW CCS certificated engine model WeichaiWP4.1CD83E200

  • marine diesel generator set 64KW CCS certificated engine model WeichaiWP4.1CD83E200
  • marine diesel generator set 64KW CCS certificated engine model WeichaiWP4.1CD83E200
  • marine diesel generator set 64KW CCS certificated engine model WeichaiWP4.1CD83E200
Place of Origin CHINA
Brand Name weichai
Certification CE
Model Number WP4
Minimum Order Quantity 1
Price 3478
Packaging Details wooden cases
Supply Ability 234

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description



Marine Diesel Generator Set – Technical Specifications

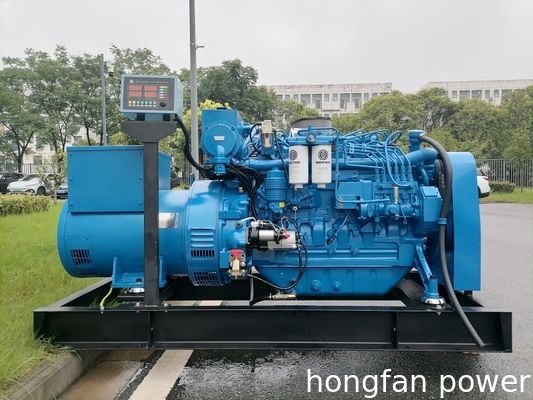

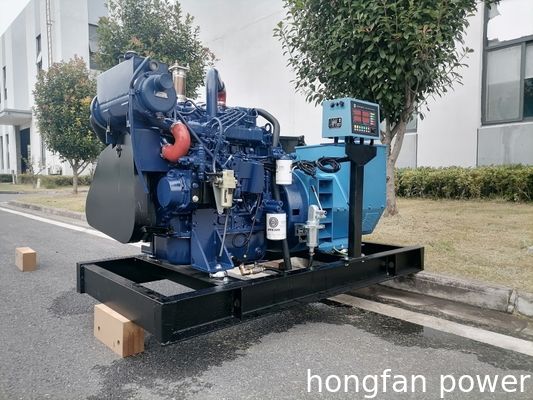

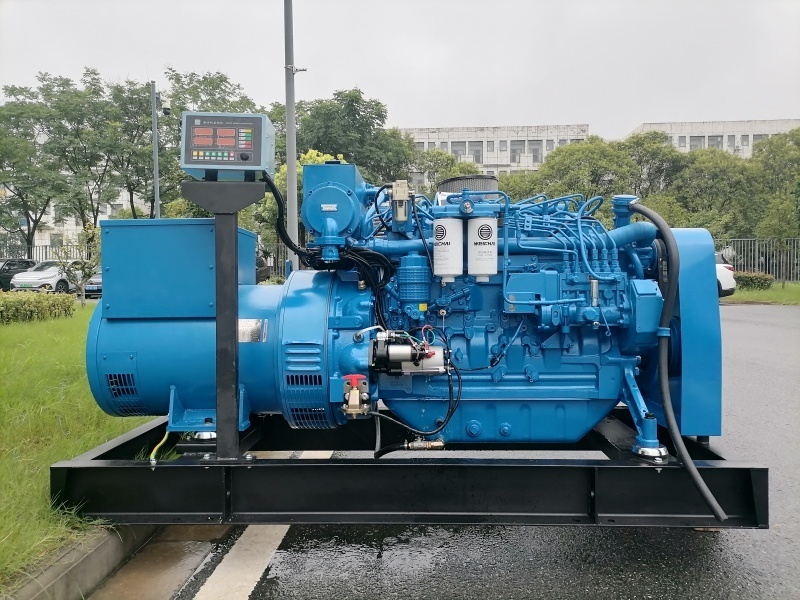

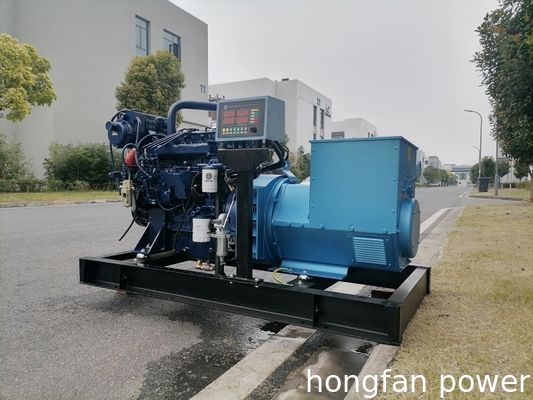

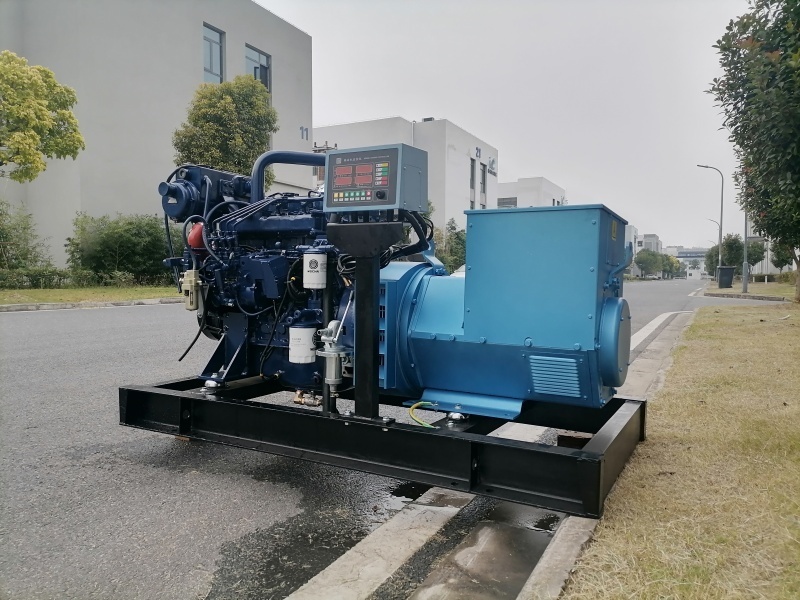

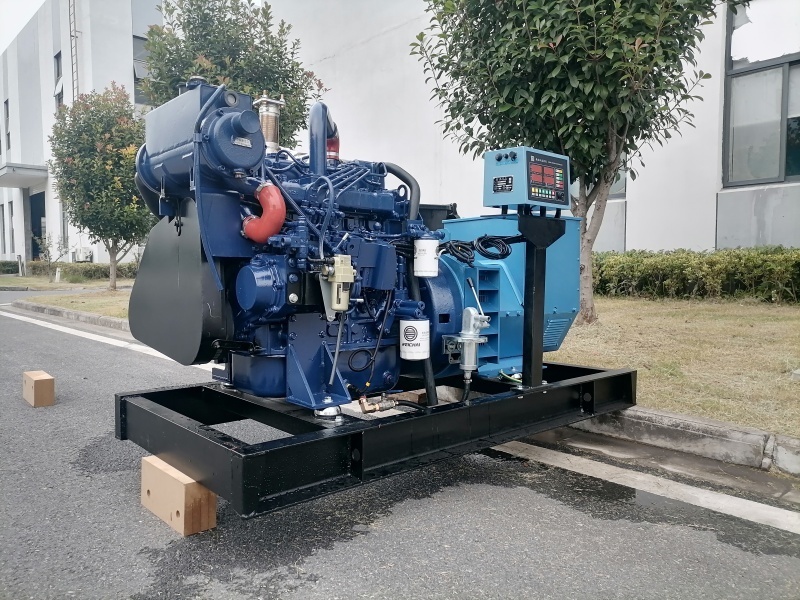

marine diesel generator set 64KW CCS certificated engine model WeichaiWP4.1CD83E200 0

Model: CCFJ64J-W
Rated Power: 64 kW
Frequency: 50 Hz
Voltage: 380 V
Structure Type: Open-type (Skid-mounted)
Certification: CCS (China Classification Society)

1. Diesel Engine

  • Brand / Model: Weichai WP4.1CD83E200

  • Rated Power: 75 kW

  • Speed: 1500 rpm

  • Starting Method: Electric start

  • Cooling System: Radiator cooled

  • Certification: CCS compliant

2. Alternator

  • Brand / Model: Marathon MP-H-64-4

  • Rated Power: 64 kW

  • Voltage: 380 V

  • Frequency: 50 Hz

  • Type: Brushless, 4-pole synchronous alternator

  • Insulation Class: H

  • Protection Class: IP23

  • Certification: CCS

3. Control System

  • Type: Marine-side panel controller

  • Manufacturer: Shandong Hongfan Power Technology Co., Ltd.

  • Functions:

    • Manual / Automatic start

    • Alarm and protection functions for:
      • Low oil pressure
      • High coolant temperature
      • Overspeed
      • Other fault conditions

4. Complete Generator Set

  • Structure: Open-type (Skid-mounted)

  • Cooling System: Radiator

  • Dimensions (L × W × H): 1690 × 1250 × 1180 mm

  • Weight: 1250 kg

  • Certification: CCS

5. Price and Delivery

  • Delivery Period: 30 days

  • Contact way:

    Email:honfanpower@163.com

    Whatsapp/wechat:+8618766952912
