Weichai Baudouin 12M33 Diesel Engine Parts – High-Quality Components for Optimal Performance
| Place of Origin | CHINA |
|---|---|
| Brand Name | WEICHAI baudouin |
| Model Number | 12M33 |
| Minimum Order Quantity | 1 |
| Price | 67000 |
| Packaging Details | wooden cases |
| Delivery Time | 30 days |
| Supply Ability | 200 pcs month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Maximum Torque | 1700N·m | Rated Power | 336KW |
|---|---|---|---|
| Net Weight | 1850kg | Starting Mode | Electric |
| Compression Ratio | 17.5:1 | Bore*Stroke | 128*150mm |
| Rated Speed | 1800r/min | Oil Capacity | 45L |
Product Description

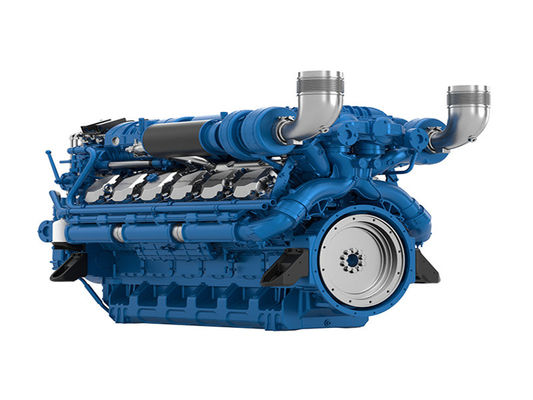

The Weichai BAUDOUIN 6M33, 12M33, and 16M33 series marine diesel engines are renowned for their exceptional performance, fuel efficiency, and reliability. These engines are specifically designed to meet the demanding requirements of marine propulsion and auxiliary power generation.
Key Specifications
Here are the key technical features of the 6M33, 12M33, and 16M33 engine series:
- Engine Type: Four-stroke, water-cooled, in-line/V-type, turbocharged, and aftercooled.
- Fuel Type: Diesel.
- Cylinder Arrangement: Inline or V-type configuration.
- Number of Cylinders:
- 6 cylinders (6M33)
- 12 cylinders (12M33 and 16M33)
- Displacement:
- 6 cylinders: 19.6 liters
- 12 cylinders: 39.2 liters
- Power Range: 404–2100 kW (550–2860 Ps).
- Fuel Consumption Rate: ≤0.6 g/kW·h.
- Minimum Fuel Consumption: 190 g/kW·h.
- Torque Reserve: 20–35%.
- Noise Control: ≤99 dB(A).
Dimensions and Weight
- 6M33 Series: Dimensions – 1870×1000×1400 mm; Net weight – 2390 kg.
- 12M33 and 16M33 Series: Dimensions – 2210×1418×1554 mm; Net weight – 3900 kg.
Complete Model Portfolio
Weichai’s 6M33, 12M33, and 16M33 series offer a wide range of models to cater to various power and application needs:
6M33 Series Models
| Model | Turbocharging | Power (kW/Ps) | Speed (r/min) | Fuel System | Emission Standard |
|---|---|---|---|---|---|
| 6M33C550-15 | Turbocharged | 404/550 | 1500 | Mechanical Pump | IMO P1 |
| 6M33C750-18 | Turbocharged | 551/750 | 1800 | Mechanical Pump | IMO P2 |
| 6M33C912-19E211 | Turbocharged | 670/912 | 1900 | High-Pressure Common Rail (HPCR) | IMO P3 |
| 6M33C1020-20E211 | Turbocharged | 750/1020 | 2000 | High-Pressure Common Rail (HPCR) | IMO P4 |
12M33 Series Models
| Model | Turbocharging | Power (kW/Ps) | Speed (r/min) | Fuel System | Emission Standard |
|---|---|---|---|---|---|
| 12M33C1000-15 | Turbocharged | 735/1000 | 1500 | Mechanical Pump | IMO P1 |
| 12M33C1200-18 | Turbocharged | 882/1200 | 1800 | Mechanical Pump | IMO P1 |
| 12M33C1400-18E211 | Turbocharged | 1030/1400 | 1800 | High-Pressure Common Rail (HPCR) | IMO P1 |
| 12M33C1650-18E211 | Turbocharged | 1214/1650 | 1800 | High-Pressure Common Rail (HPCR) | IMO P3 |
16M33 Series Models
| Model | Turbocharging | Power (kW/Ps) | Speed (r/min) | Fuel System | Emission Standard |
|---|---|---|---|---|---|
| 16M33C1750-16E211 | Turbocharged | 1287/1750 | 1600 | High-Pressure Common Rail (HPCR) | IMO P1 |
| 16M33C1950-18E211 | Turbocharged | 1434/1950 | 1800 | High-Pressure Common Rail (HPCR) | IMO P1 |
| 16M33C2100-18E211 | Turbocharged | 1545/2100 | 1800 | High-Pressure Common Rail (HPCR) | IMO P2 |
Applications
The Weichai 6M33, 12M33, and 16M33 series are widely used in the following applications:
- Marine Propulsion: Provides reliable power for fishing boats, cargo ships, and tugboats.
- Auxiliary Power Generation: Supports onboard and onshore power demands.
With designs that comply with IMO emission standards, these engines are both environmentally friendly and highly efficient, making them a preferred choice for modern marine applications.
Why Choose Weichai Marine Engines?
- Advanced Technology: Incorporates turbocharging and high-pressure common rail systems for optimal performance.
- Wide Range of Models: Offers diverse power and configuration options to meet various requirements.
- Global Recognition: Produces over 10,000 units annually, trusted worldwide for their reliability and durability.
The Weichai 6M33, 12M33, and 16M33 series marine diesel engines are the ultimate solution for marine propulsion and auxiliary power. With their high performance, fuel efficiency, and low noise levels, they deliver unmatched value for customers in the maritime sector.
For detailed specifications or to request a quote, feel free to contact us today!
