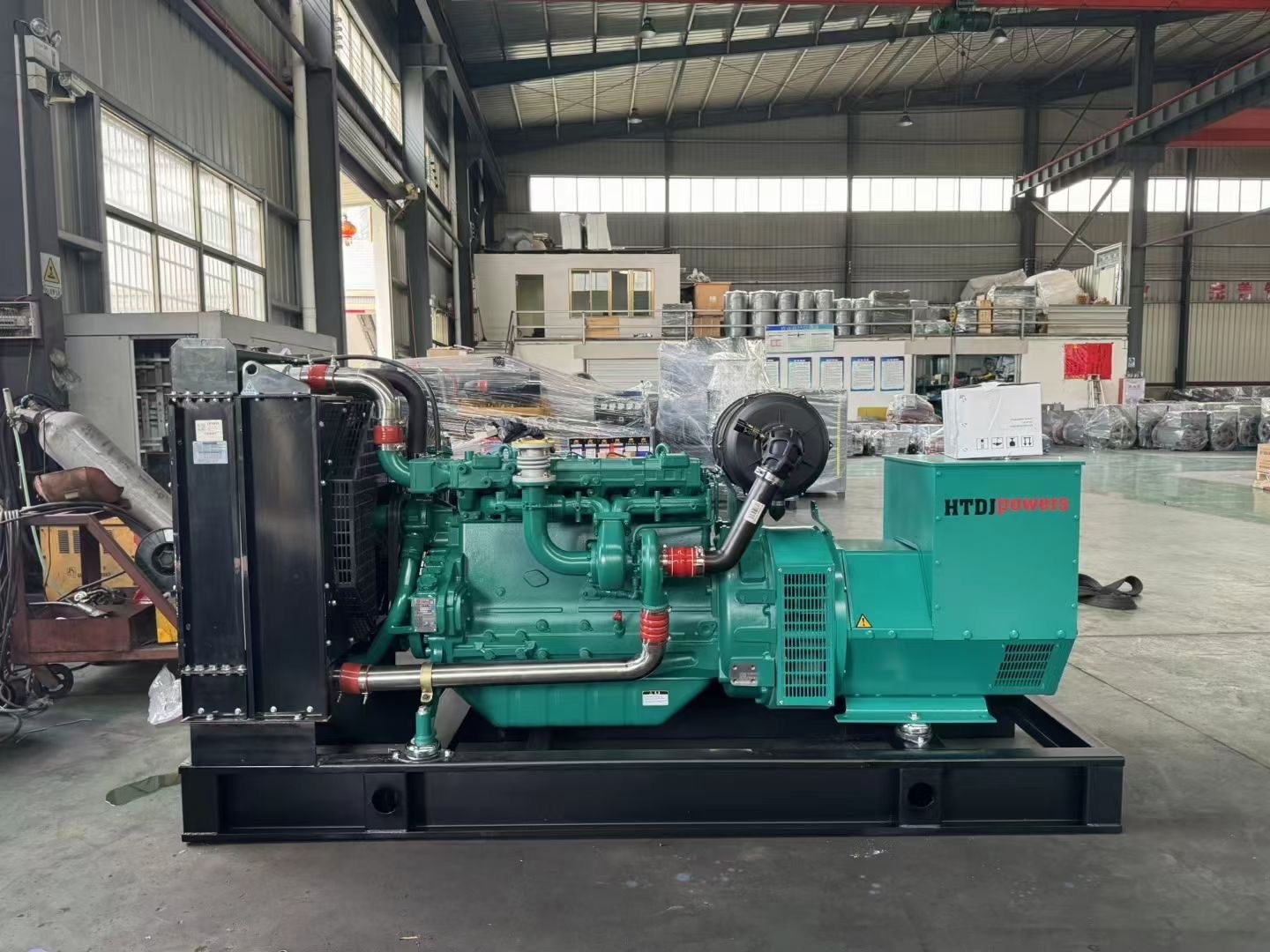

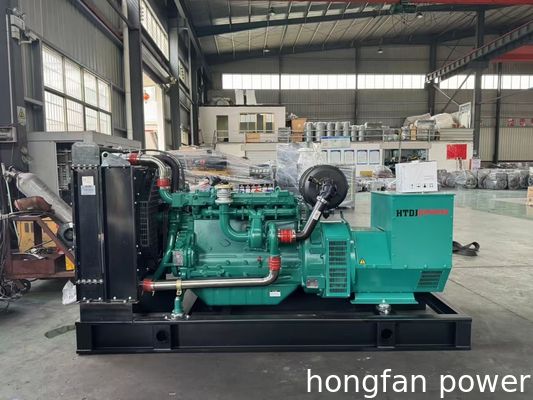

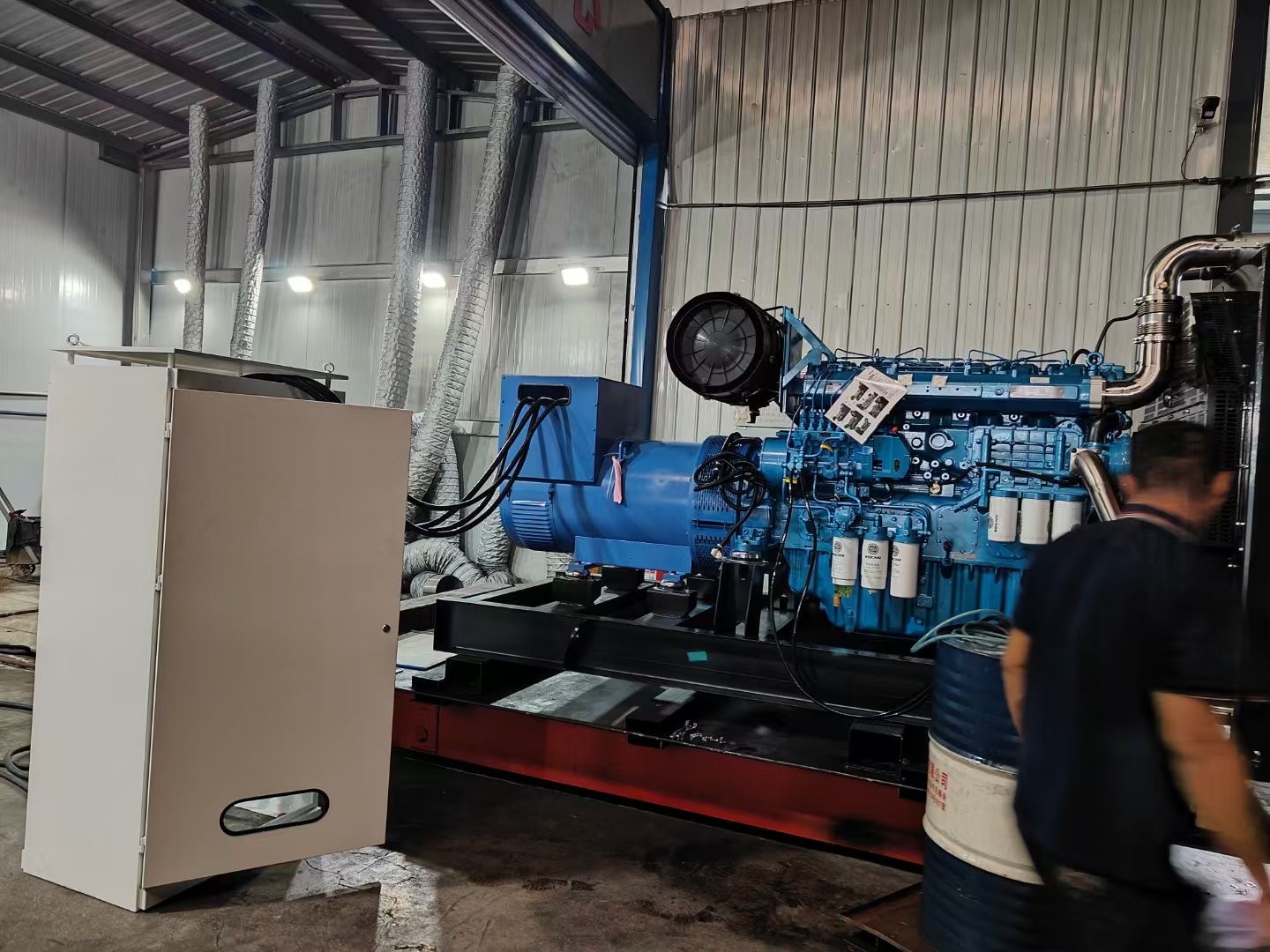

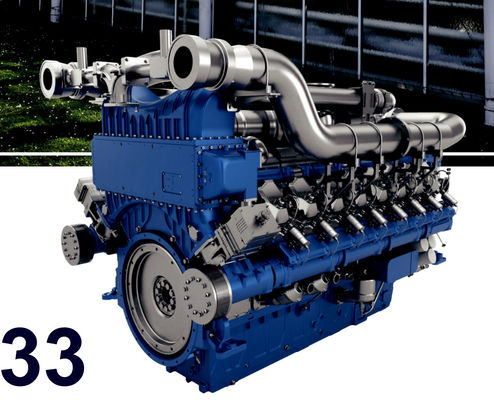

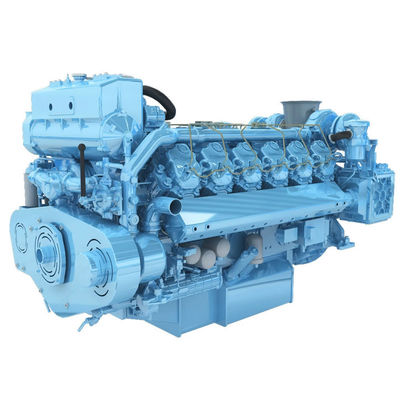

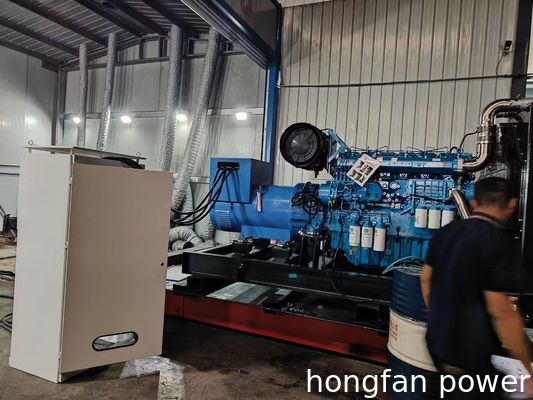

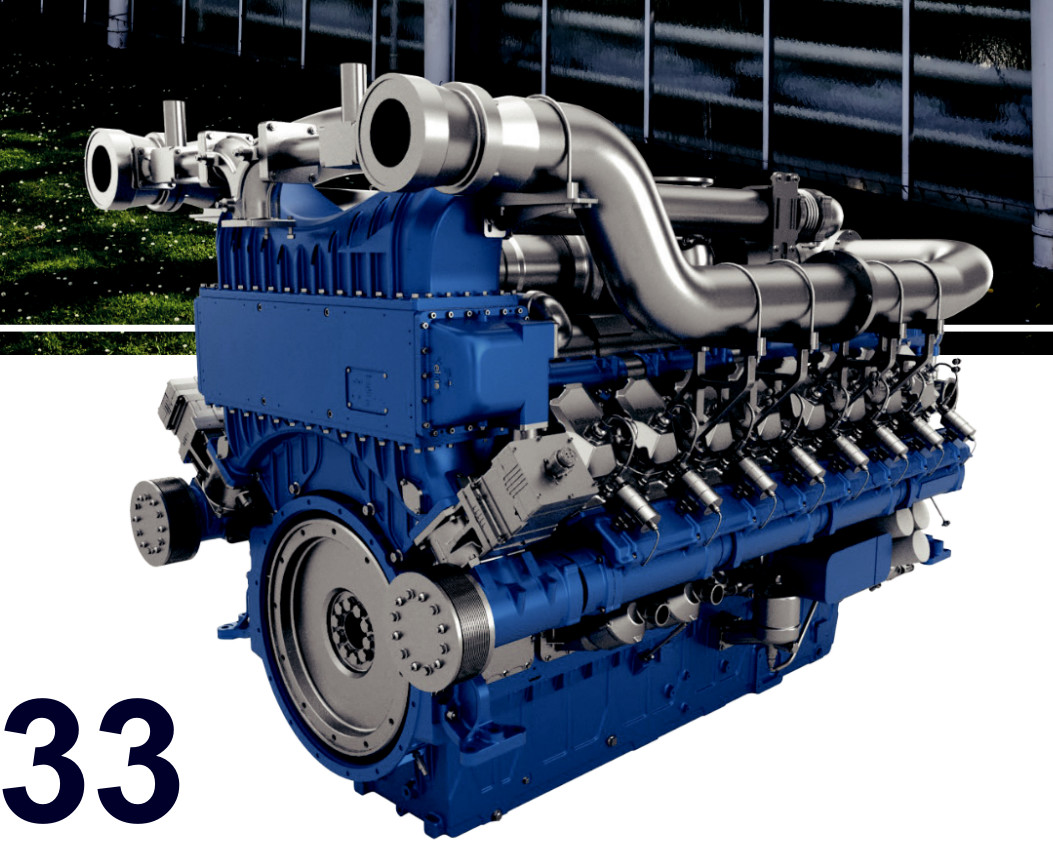

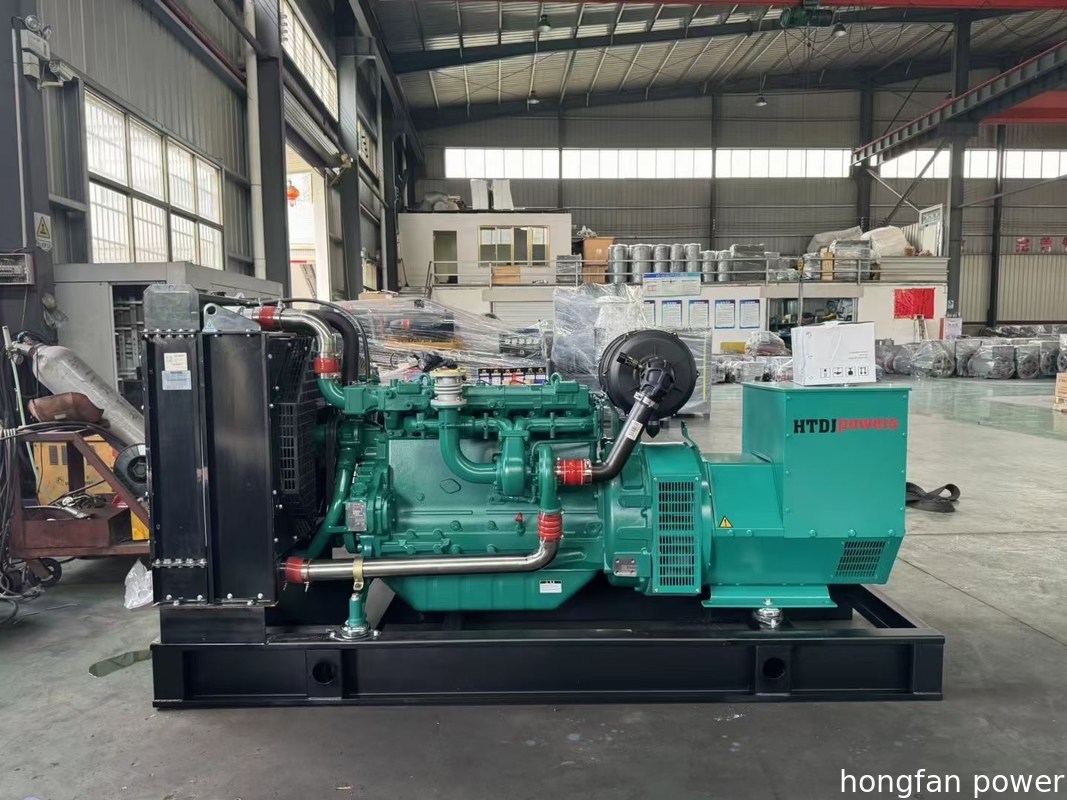

weichai baudouin 6M33 12M33 diesel generator 500-1800kw
| Place of Origin | CHINA |
|---|---|
| Brand Name | WEICHAI |
| Model Number | baudouin |
| Minimum Order Quantity | 1 |
| Price | 5690 |
| Packaging Details | wooden cases |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Emission Standard | Euro III | Bore*Stroke | 128*150mm |
|---|---|---|---|
| Cylinder Number | 6 | Engine Type | Diesel |
| Overall Dimension | 1750*1300*1450mm | Oil Capacity | 45L |
| Rated Speed | 1800r/min | Rated Power | 336KW |
Product Description
Product Description:
Looking for reliable engine parts for your Weichai diesel engine? Look no further than our selection of high-quality Weichai engine parts. Our inventory includes parts for Weichai WP12 and WP13 engines, as well as Weichai 8170 diesel engines. Whether you need a replacement part or an upgrade to boost performance, we have you covered.
Our Weichai engine parts are designed to meet the specific needs of Weichai diesel engines, ensuring optimal performance and longevity. With a cylinder number of 6 and bore*stroke of 128*150mm, our parts are compatible with a range of Weichai engine models.
One of the standout features of our Weichai engine parts is their oil capacity. With a capacity of 45L, these parts are designed to keep your engine running smoothly and efficiently, reducing the need for frequent oil changes and maintenance.
In addition to their high-quality design and construction, our Weichai engine parts also meet Euro III emission standards, making them an eco-friendly choice for your diesel engine needs.
Our selection of Weichai engine parts includes a range of options to suit your specific needs. From air filters and oil filters to fuel injectors and cylinder heads, we have the parts you need to keep your engine running at its best. And with our competitive pricing and fast shipping, you can get the parts you need quickly and affordably.
Invest in the best for your Weichai diesel engine with our selection of high-quality Weichai engine parts. Browse our inventory today to find the parts you need to keep your engine running smoothly.
Features:
- Product Name: weichai engine parts
- Displacement: 11.1L
- Compression Ratio: 17.5:1
- Oil Capacity: 45L
- Rated Power: 336KW
- Overall Dimension: 1750*1300*1450mm
- Compatible with weichai baudouin engine parts
- Compatible with weichai WP12 WP13 engine parts
Technical Parameters:
| Type | Four-stroke, water cooled, in-line/V type turbocharged and aftercooled | Number of cylinders | 6月12日 | ||||
| Bore & stroke | 150×185 (mm) | Displacement | 19.6 L / 39.2 L | ||||
| Oil consumption rate | ≤0.8 g/kW.h | Noise | ≤100 dB(A) | ||||
| Minimum fuel consumption rate | 190 g/kW.h | Idle speed | 650±30 r/min | ||||
| Torque reserve | 20-30% | Rotation | Counter-clockwise | ||||
| (facing the flywheel) | |||||||
| Dimensions (L×W×H) / net weight | L6:1870×1000×1400(mm) / 2390kg | ||||||
| V12:2210×1418×1554(mm) / 3900kg | |||||||
| Model Portfolio Table | |||||||
| Series | Model | Aspiration | Rated power | Speed | Fuel system | Emission | Power rating |
| kW/Ps | r/min | ||||||
| 6M33 | 6M33C550-15 | TA | 404/550 | 1500 | Mechanical pump | IMO | P1 |
| 6M33C600-18 | TA | 441/600 | 1800 | Mechanical pump | IMO | P1 | |
| 6M33C650-18 | TA | 478/650 | 1800 | Mechanical pump | IMO | P1 | |
| 6M33C700-18 | TA | 515/700 | 1800 | Mechanical pump | IMO | P1 | |
| 6M33C750-18 | TA | 551/750 | 1800 | Mechanical pump | IMO | P2 | |
| 6M33C750-18E211 | TA | 552/750 | 1800 | HPCR | IMO | P1 | |
| 6M33C830-18E211 | TA | 610/830 | 1800 | HPCR | IMO | P2 | |
| 6M33C912-19E211 | TA | 670/912 | 1900 | HPCR | IMO | P3 | |
| 6M33C1020-20E211 | TA | 750/1020 | 2000 | HPCR | IMO | P4 | |
| 12M33 | 12M33C1000-15 | TA | 735/1000 | 1500 | Mechanical pump | IMO | P1 |
| 12M33C1200-18 | TA | 882/1200 | 1800 | Mechanical pump | IMO | P1 | |
| 12M33C1300-18 | TA | 956/1300 | 1800 | Mechanical pump | IMO | P1 | |
| 12M33C1400-18 | TA | 1029/1400 | 1800 | Mechanical pump | IMO | P1 | |
| 12M33C1500-18 | TA | 1103/1500 | 1800 | Mechanical pump | IMO | P2 | |
| 12M33C1400-18E211 | TA | 1030/1400 | 1800 | HPCR | IMO | P1 | |
| 12M33C1500-18E211 | TA | 1104/1500 | 1800 | HPCR | IMO | P2 | |
| 12M33C1650-18E211 | TA | 1214/1650 | 1800 | HPCR | IMO | P3 | |
| 16M33 | 16M33C1750-16E211 | TA | 1287/1750 | 1600 | HPCR | IMO | P1 |
| 16M33C1850-16E211 | TA | 1361/1850 | 1600 | HPCR | IMO | P2 | |
| 16M33C1950-18E211 | TA | 1434/1950 | 1800 | HPCR | IMO | P1 | |
| 16M33C2100-18E211 | TA | 1545/2100 | 1800 | HPCR | IMO | P2 | |
| Product Attribute | Value |
|---|---|
| Product | Weichai 8170 Engine Parts |
| Compression Ratio | 17.5:1 |
| Bore*Stroke | 128*150mm |
| Overall Dimension | 1750*1300*1450mm |
| Maximum Torque | 1700N·m |
| Cylinder Number | 6 |
| Emission Standard | Euro III |
| Rated Speed | 1800r/min |
| Engine Type | Diesel |
| Net Weight | 1850kg |
| Starting Mode | Electric |
| Product Type | Weichai Diesel Generator Parts |
| Filter Type | Weichai Oil Fuel Filter |
Applications:
If you are looking for reliable and high-quality engine parts for Weichai engines, then you should definitely consider the Weichai WP12 and WP13 engine parts. These parts are specifically designed to fit perfectly with Weichai diesel engines, ensuring optimal performance and longevity. Here are some product application occasions and scenarios for the Weichai engine parts:
Marine Applications
The Weichai WP12 and WP13 engine parts are perfect for marine applications such as fishing boats, cargo ships, and ferries. These engines are designed to withstand harsh marine environments and provide reliable power for all your marine needs.
Power Generation
If you are looking for Weichai diesel generator parts, then the WP12 and WP13 engine parts are a great choice. These engines are specifically designed for power generation and can provide reliable power for homes, businesses, and other applications.
Construction Equipment
The Weichai WP12 and WP13 engine parts are also ideal for construction equipment such as excavators, bulldozers, and loaders. These engines are powerful and durable, making them perfect for heavy-duty construction applications.
Transportation
Whether you need reliable power for a bus, truck, or other transportation vehicle, the Weichai WP12 and WP13 engine parts are a great choice. These engines are designed to provide efficient and reliable power for all your transportation needs.
With a compression ratio of 17.5:1 and a rated power of 336KW, the Weichai WP12 and WP13 engine parts are powerful and efficient. They also have an oil capacity of 45L and an overall dimension of 1750*1300*1450mm, making them versatile and easy to install in a variety of applications. The bore*stroke of 128*150mm also ensures optimal performance and longevity. So, whether you need Weichai diesel generator parts or Weichai WP12 WP13 engine parts for other applications, you can trust in the quality and reliability of these products.
Support and Services:
Weichai Engine Parts Product Technical Support:
- Comprehensive technical support provided by experienced engineers
- Assistance with installation, maintenance, and repair of Weichai engine parts
- Troubleshooting guidance to resolve any issues that may arise
- Regular updates on new developments and product improvements
Weichai Engine Parts Product Services:
- Warranty on all Weichai engine parts
- Quick and efficient delivery of parts
- Competitive pricing and flexible payment options
- Customized solutions for specific customer needs
Packing and Shipping:
Product Packaging:
- All weichai engine parts are securely packaged in high-quality material to ensure safe transport.
- Each part is individually wrapped and labeled for easy identification.
- The packaging is designed to protect the parts from damage during transportation and storage.
Shipping:
- We ship all weichai engine parts using reputable carriers that offer reliable and timely delivery.
- Shipping costs are calculated based on the weight and dimensions of the package, as well as the destination.
- We offer both domestic and international shipping options to meet the needs of our customers.
- Once your order has been shipped, we will provide you with a tracking number so you can easily track your package.
