Name: jinan diesel engine 500KW biogas generator set model 500GF-NK
Brand: Shandong Hongfan Power Technology Co.,Ltd
SKU: G12V190ZDT-2
Price: 67000 USD
Availability: InStock

Place of Origin:

CHINA

Brand Name:

JICHAI JINAN

Model Number:

G12V190ZDT-2

Minimum Order Quantity:

Price:

67000

Packaging Details:

wooden cases

Delivery Time:

30 days

Supply Ability:

200 pcs month

Insulation Grade:

Ambient Temperature:

≤40℃

Noise Level:

≤105dB(A)

Voltage Regulation:

AVR Automatic Voltage Regulation

Excitation System:

Brushless, Self-exciting

Protection Grade:

IP23

Speed:

1500rpm/1800rpm

Power:

100KW-2000KW

Biogas generators have become an essential component for organizations seeking sustainable energy solutions. The 500KW biogas generator set detailed below offers high efficiency, reliable performance, and environmental benefits, suitable for various applications. Below are its technical specifications, supply scope, pricing details, and terms.

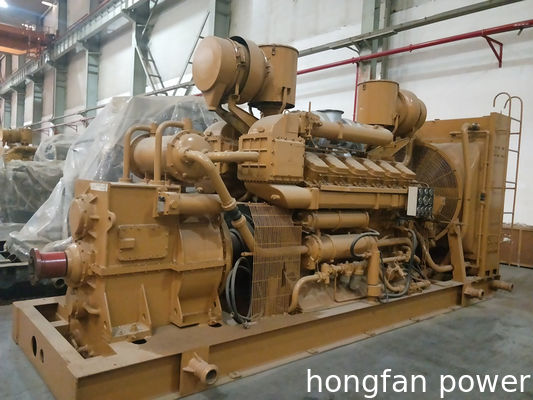

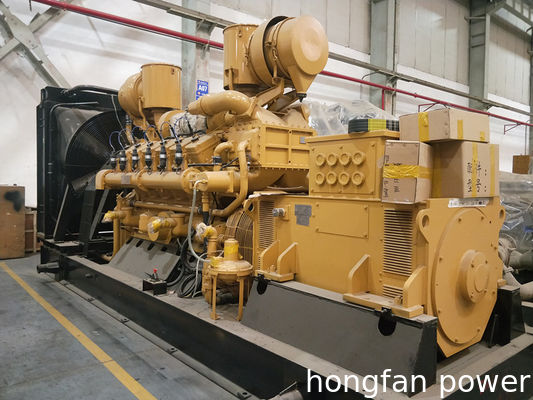

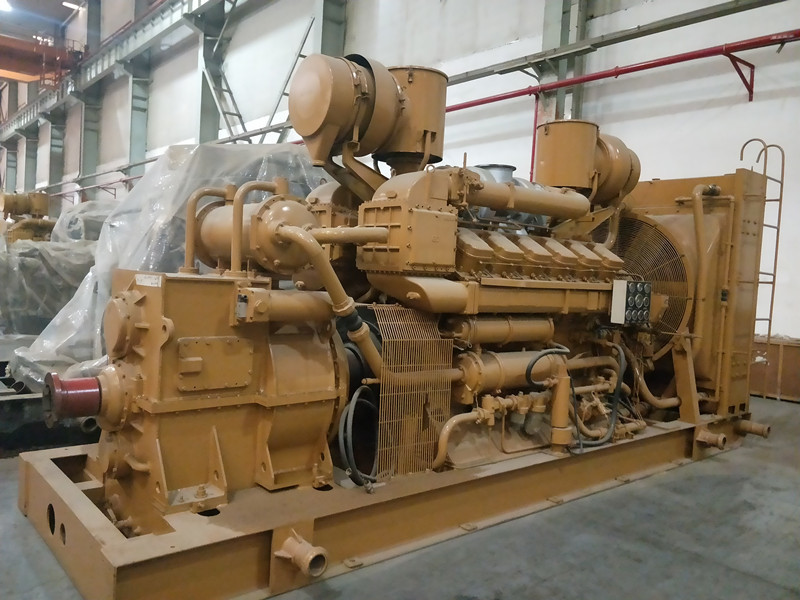

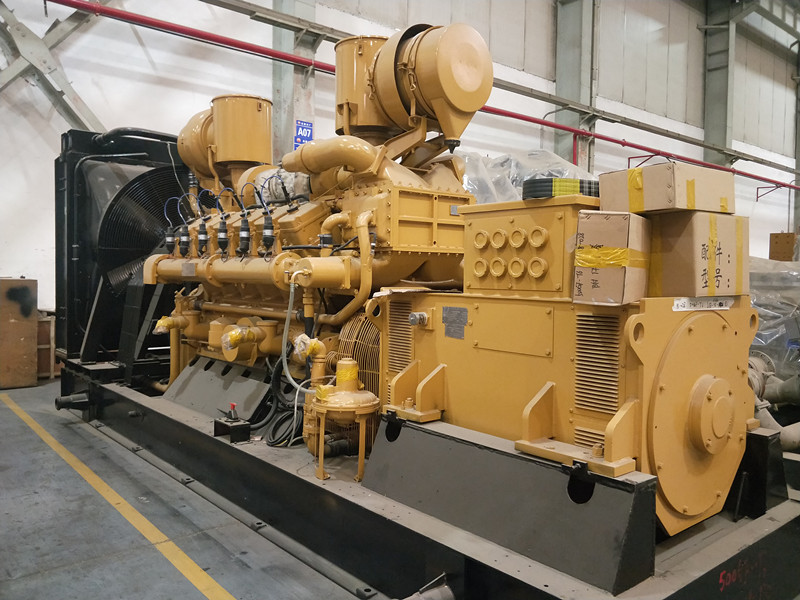

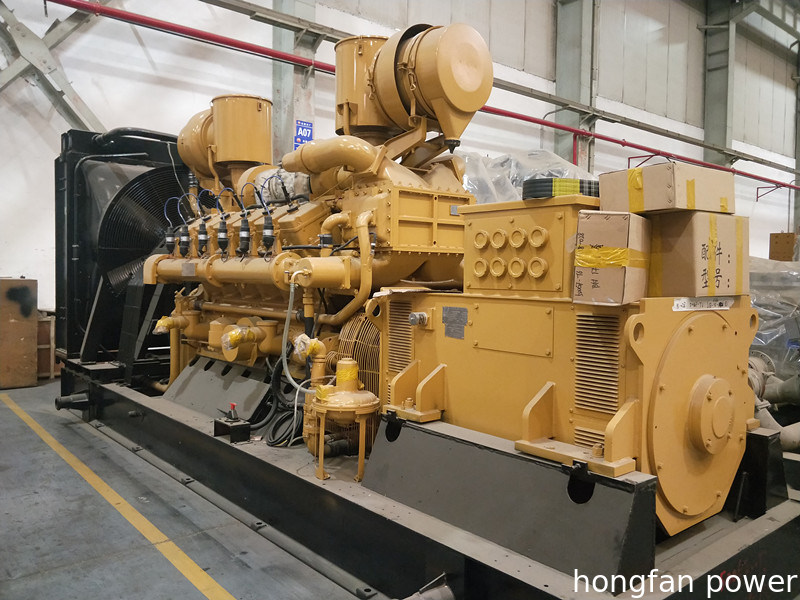

jinan diesel engine 500KW biogas generator set model 500GF-NK 0

1. Technical Specifications of the Biogas Generator Set

Generator Parameters

Parameter	Details
Model of Generator	500GF-NK
Rated Power	500KW
Rated Speed	1000 r/min
Rated Voltage	400V
Rated Frequency	50Hz
Power Factor	0.8 (lagging)
Supply Method	Three-phase four-wire system
Excitation Method	Brushless
Starting Method	24V DC start
Cooling Method	Closed water cooling
Speed Regulation	Electronic speed regulation (WOODWARD)
Overall Dimensions (L×W×H)	6195×2200×2778 mm
Net Weight	12,500 kg

Electrical Performance

Parameter	Details
Voltage
Stable Regulating Rate	±2.5%
Instantaneous Regulating Rate	+22% to -18%
Recovery Time	1.5 seconds
Fluctuation	≤1.2%
Frequency
Stable Regulating Rate	0–5%
Instantaneous Regulating Rate	≤±15%
Recovery Time	<12 seconds
Fluctuation	≤2%

Engine Parameters

Parameter	Details
Model	12V190ZDT1-2
Rated Power/Speed	550KW / 1000 r/min
Cylinders	12, 60° V-type
Type	4-stroke, water-cooled, turbocharged and aftercooled, spark plug ignition, out-mixed
Bore	190 mm
Stroke	210 mm
Compression Ratio	8:1
No-Load Minimum Stable Speed	700 r/min
Gas Pressure	80–150 KPa
Heat Consumption Rate	11,000 kJ/kWh
Fuel	Biogas
Oil Consumption	≤1.6 g/kWh
Oil Tank Volume	400 liters
Exhaust Temperature (Before Turbine)	≤650°C
Water Outlet Temperature	≤90°C
Water Inlet Temperature	≤70°C
Intercooler Inlet Temperature	≤45°C
Noise Level	123 dB

Generator Parameters

Parameter	Details
Model	1FC5
Power Factor 0.8 Efficiency	94%
Power Factor 0.8 Power	480KW
Frequency	50Hz
Voltage	400V
Wiring Method	Three-phase and four-wire
Protection Level	IP23
Insulation Class	F
Excitation Method	Brushless
Speed	1000 r/min
Net Weight	8,300 kg

Environmental Requirements

The generator is designed to operate stably under these conditions:

Temperature: -35°C to +35°C
Relative Humidity: <90% at 20°C
Altitude: ≤1000 m

Standard conditions for rated power output:

Atmospheric Pressure: 100 kPa
Medium Temperature: 25°C
Relative Humidity: 30%

2. Gas Composition Requirements

Component	Percentage
CH₄	≥76.0%
C₂H₆	<10.0%
C₃H₈	<8.00%
C₄H₁₀	<6.00%
H₂S	<0.10%
CO₂	<1.00%

Calorific Value: >41,860 kJ/m³
Gas entering the generator must be free from water, oil, and impurities (dust content <10 mg/m³, grain impurity <5μ).

3. Supply Scope

The package includes:

Biogas engine and alternator
Control panel
Spare parts and tools
Radiator and silencer
Oil and water preheating device
Export wooden case and documentation

4. Delivery Terms

Delivery within 60 days after contract confirmation and receipt of advance payment.

5. Warranty Period

15 months from the delivery date or 1500 operating hours, whichever comes first.

6. Payment Terms

30% Advance Payment: Within 7 days after signing the contract.
70% Remaining Balance: To be paid within 15 days of the goods being ready for shipment, as per the seller's confirmation and packing list.

This 500KW biogas generator offers a cost-effective and environmentally friendly solution for power generation. For inquiries or to place an order, feel free to contact us!
