chidong marine engine 4190 please send email to 2239946438@qq.com

Large Image : chidong marine engine 4190 please send email to 2239946438@qq.com

Product Details:

Place of Origin:	china
Brand Name:	jinan diesel engine
Certification:	ce
Model Number:	12v190

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	1
Packaging Details:	wooden cases
Delivery Time:	45
Supply Ability:	23

Contact Now

Detailed Product Description

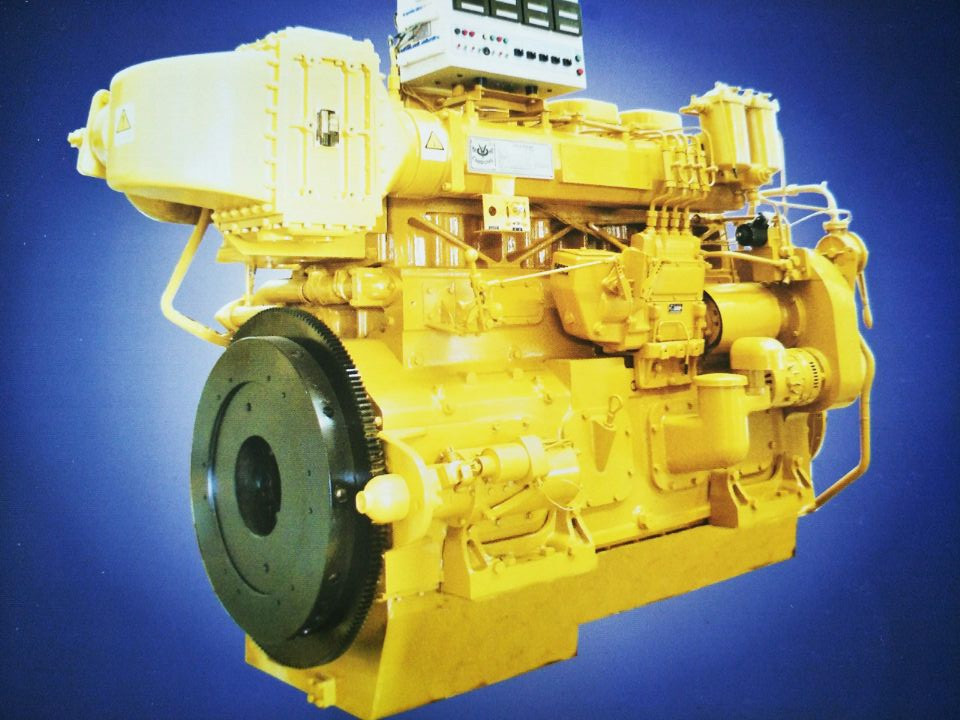

4 in-line marine diesel engines
Model	Rated Power(kw/hp)	Rated speed(r/min)	Specific fuel consumption(g/kw’h)	Specific oil consumption(g/kw’h)	Overall dimension LBH(mm)	Net weight(kg)
4190ZLCZ-R	330/450	1450	≤ 205	≤ 1.5	229012401750	3000
4190ZLC	330/450	1450	≤ 205	≤ 1.5	229012401750	3000
4190ZLCZ-1R	270/360	1200	≤ 205	≤ 1.5	229012401750	3000
4190ZLC-1	270/360	1200	≤ 205	≤ 1.5	229012401750	3000
4190ZLCZ-2R	220/300	1000	≤ 205	≤ 1.5	229012401750	3000
4190ZLC-2	220/300	1000	≤ 205	≤ 1.5	229012401750	3000
4190ZLCZ1-2R	180/240	1000	≤ 205	≤ 1.5	229012401750	3000
4190ZLC1-2	180/240	1000	≤ 205	≤ 1.5	229012401750	3000
4190ZLCZ-3R	300/400	1300	≤ 205	≤ 1.5	229012401750	3000
4190ZLC-3	300/400	1300	≤ 205	≤ 1.5	229012401750	3000
4190ZLC1	330/450	1450	≤ 205	≤ 1.5	229012401750	3000
Main technical data No. and arrangement of cylinders:4-cylinder,in-line Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection Bore:190mm Stroke:210mm Total displacement:23.82L Compression ration:14:1 Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel) Starting method:Air motor or electric motor Lubricating method:Pressure and splash lubrication
