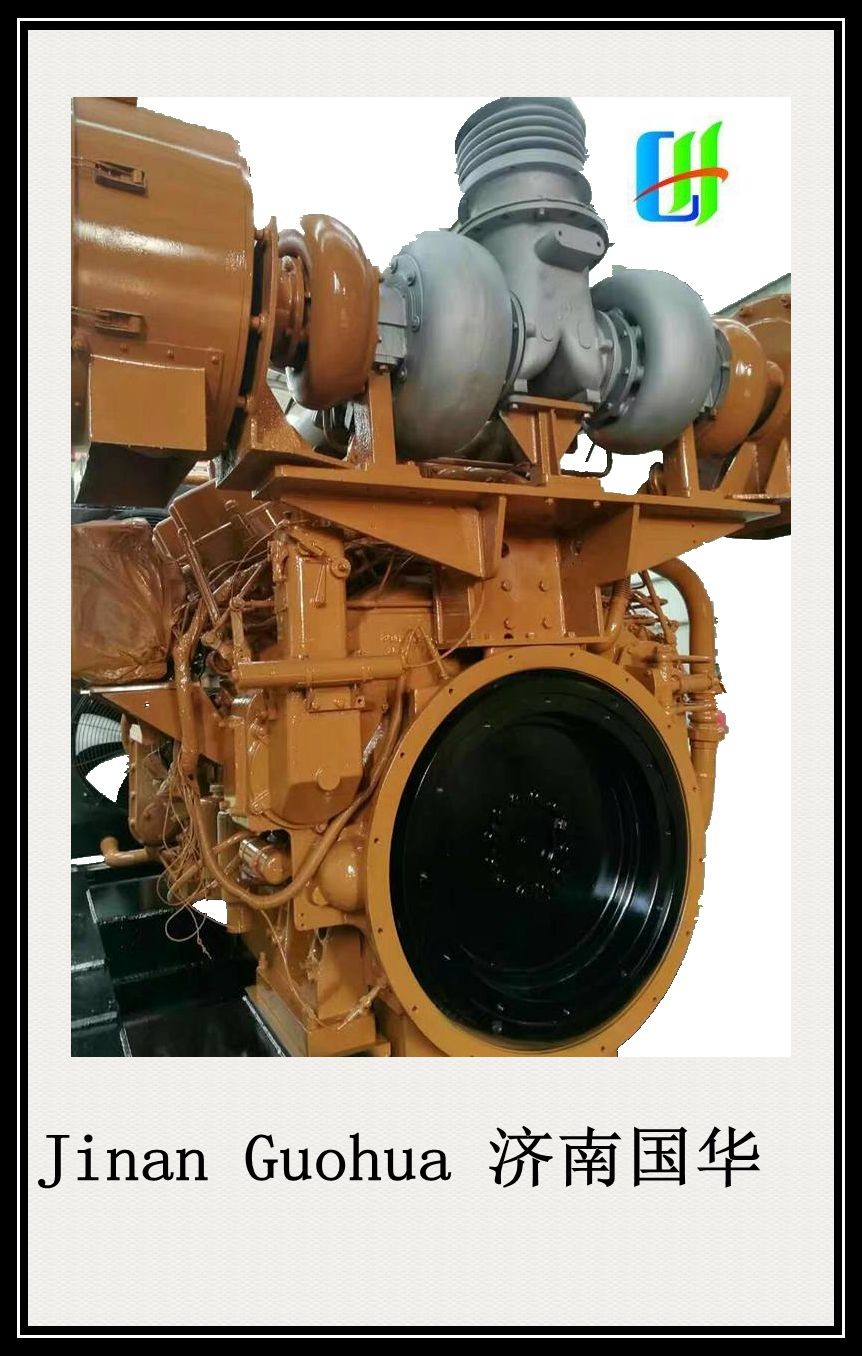

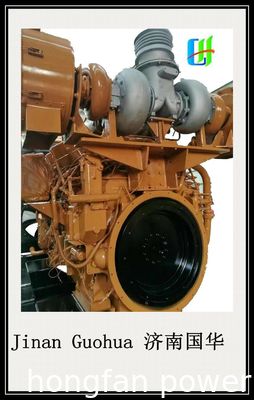

chidong diesel engine
| Place of Origin | CHINA |
|---|---|
| Brand Name | chidong |
| Certification | CE |
| Model Number | B12V190PZL |
| Minimum Order Quantity | 1 |
| Price | 1 |
| Packaging Details | WOODEN CASES |
| Delivery Time | 45 |
| Supply Ability | 1 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
| Series B3000 diesel engines | |||||||
| Model | Rated Power(KW/hp) | Rated Speed(r/min) | Specific fuel consumption(g/kw.h) | Specific oil consumption(g/kw.h) | Overall Dimension L＊B＊H(mm) | Net weigh(KG) | |
| B12V190ZL | 1320/1500 | 1200/1500 | ≤202 | ≤1.0 | 2950*1980*2206 | 9300 | |
| B12V190PZL | 1320/1500 | 1200/1500 | ≤202 | ≤1.0 | 3980＊2250＊2739 | 11000 | |
| B12V191ZL-1 | 1140/1200 | 1040/1200 | ≤202 | ≤1.0 | 2950*1980*2206 | 9300 | |
| B12V191PZL-1 | 1140/1200 | 1040/1200 | ≤202 | ≤1.0 | 3980＊2250＊2739 | 11000 | |
| B12V191ZL-2 | 930/1000 | 840/1000 | ≤202 | ≤1.0 | 2950*1980*2206 | 9300 | |
| B12V191PZL-2 | 930/1000 | 840/1000 | ≤202 | ≤1.0 | 3980＊2250＊2739 | 11000 | |
| B12V191ZL-3 | 1180/1300 | 1080/1300 | ≤202 | ≤1.0 | 2950*1980*2206 | 9300 | |
| B12V191PZL-3 | 1180/1300 | 1080/1300 | ≤202 | ≤1.0 | 3980＊2250＊2739 | 11000 | |
| BH12V190ZL | 1360/1500 | 1235/1500 | ≤202 | ≤1.0 | 2950*2280*2069 | 9300 | |
| BH12V190PZL | 1360/1500 | 1235/1500 | ≤202 | ≤1.0 | 4198*2345*2636 | 11000 | |
| BH12V191ZL-1 | 1160/1200 | 1060/1200 | ≤202 | ≤1.0 | 2950*2280*2069 | 9300 | |
| BH12V191PZL-1 | 1160/1200 | 1060/1200 | ≤202 | ≤1.0 | 4198*2345*2636 | 11000 | |
| BH12V191ZL-2 | 960/1000 | 870/1000 | ≤202 | ≤1.0 | 2950*2280*2069 | 9300 | |
| BH12V191PZL-2 | 960/1000 | 870/1000 | ≤202 | ≤1.0 | 4198*2345*2636 | 11000 | |
| BH12V191ZL-3 | 1210/1300 | 1100/1300 | ≤202 | ≤1.0 | 2950*2280*2069 | 9300 | |
| BH12V191PZL-3 | 1210/1300 | 1100/1300 | ≤202 | ≤1.0 | 4198*2345*2636 | 11000 | |
| Main technical data | |||||||
| No. and arrangement of cylinders:12,60.Vee | |||||||
| Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection | |||||||
| Bore:190mm | |||||||
| Stroke:215mm | |||||||
| Total displacement:73.15L | |||||||
| Compression ration:14.5:1 | |||||||
| Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel) | |||||||
| Starting method:Air motor or electric motor | |||||||
| Lubricating method:Pressure and splash lubrication | |||||||
