jinan diesel engine driolling engine

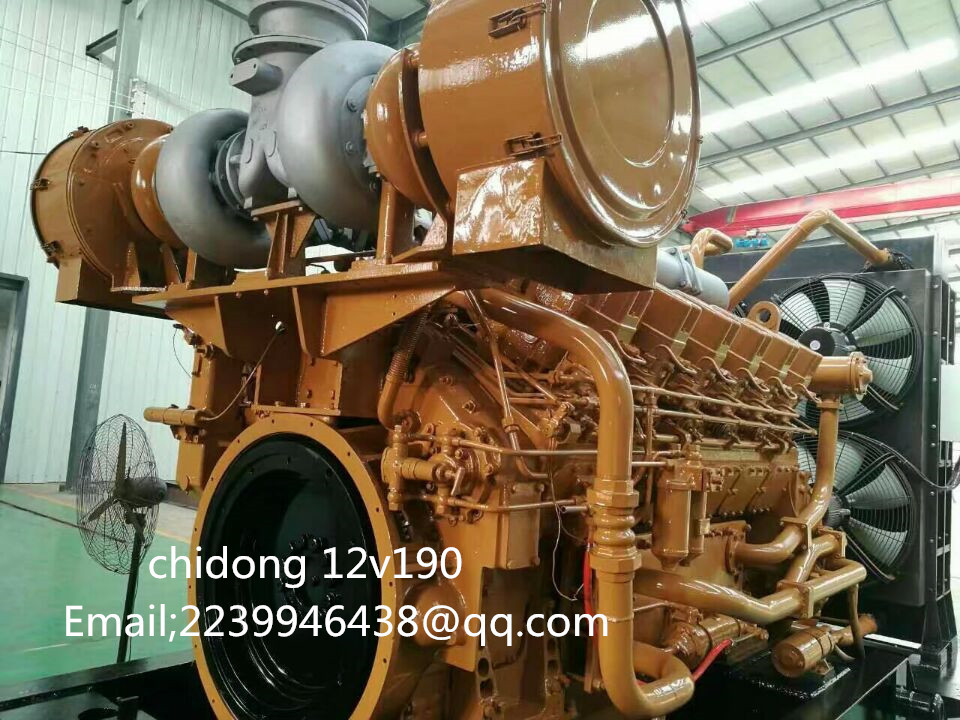

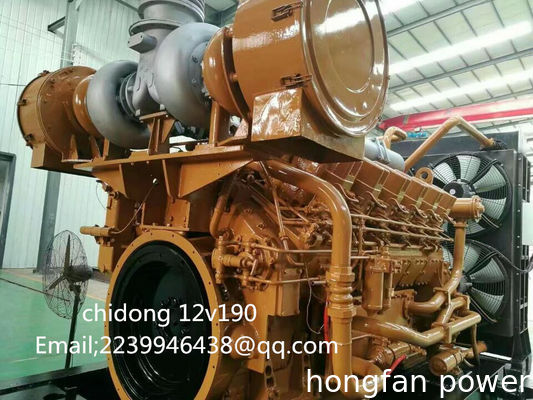

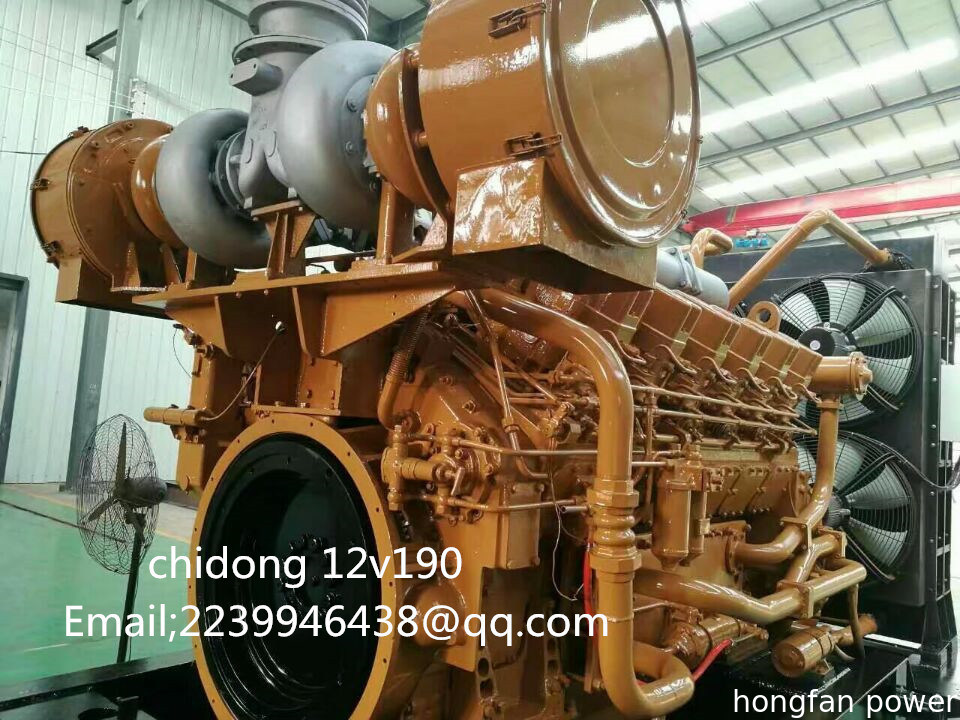

Large Image : jinan diesel engine driolling engine

Product Details:

Place of Origin:	china
Brand Name:	chidong
Certification:	ce
Model Number:	4190

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	1
Packaging Details:	wooden cases
Delivery Time:	45 days

Contact Now

Detailed Product Description

		In-line diesel engines
Model	Rated Power(KW/hp)	Rated Speed(r/min)		Specific fuel consumption(g/kw.h)	Specific oil consumption(g/kw.h)	Overall Dimension L＊B＊H(mm)	Net weigh(KG)
4190ZL	330	1500	≤208		≤1.5	2290＊1240＊1750	3000
4190PZL	330	1500	≤208		≤1.5	3119＊1370＊1896	3600
4190PZLG-1	270	1200	≤208		≤1.5	3119＊1370＊1896	3600
4190pzl-2	220	1000	≤208		≤1.5	3119＊1370＊1896	3600
4190PZLG-3	300	1300	≤208		≤1.5	3119＊1370＊1896	3600
6190ZL	450	1500	≤204		≤1.5	2990＊1243＊1763	3960
6190PZL	450	1500		≤204	≤1.5	3923＊1730＊2294	4600
6190ZL-2	330	1000	≤204		≤1.5	2990＊1243＊1763	3960
6190PZL-2	330	1000		≤204	≤1.5	3923＊1730＊2294	4600
G6190ZL	540	1500		≤204	≤1.5	299512951754	4500
G6190PZL	540	1500		≤204	≤1.5	3923*1730＊2294	5100
8190ZL	720	1500	≤205		≤1.2	3175＊1208＊2055	5200
Main technical data
No. and arrangement of cylinders:12,60.Vee
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:210mm
Total displacement:23.82/35.73/47.63L
Compression ration:14:1/14.5:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication Email:2239946438@qq.com
