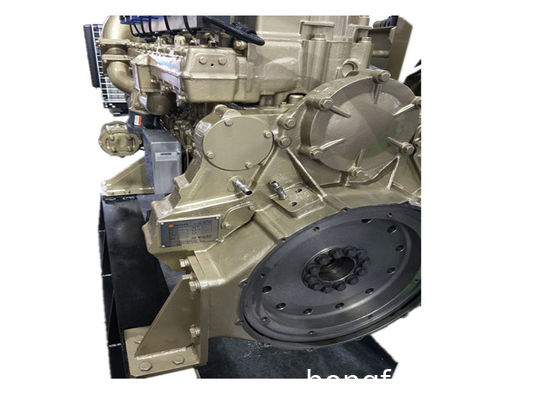

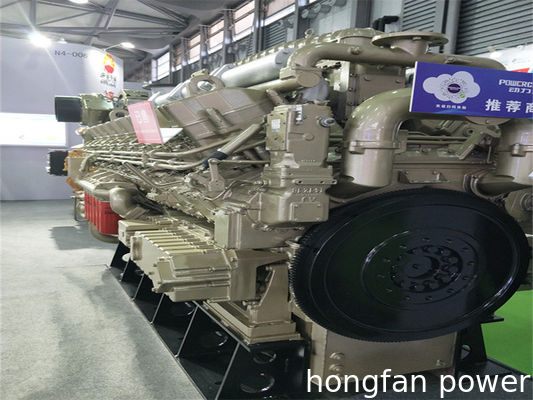

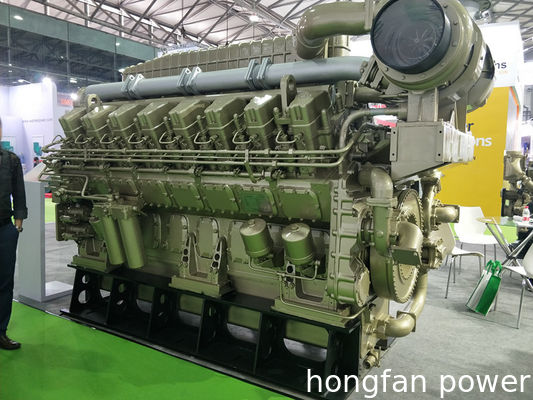

900-2400KW diesel marine engine for ship and boat jinan diesel engine cnpc jichai power 800-1000kw diesel marine engine The Perfect Solution for Your Marine Equipment Requirements
| Place of Origin | CHINA |
|---|---|
| Brand Name | jinan diesel engine |
| Certification | ce |
| Model Number | 16V190 |
| Minimum Order Quantity | 1 |
| Price | 600usd |
| Packaging Details | wooden cases |
| Delivery Time | 30 days |
| Supply Ability | 200 pcs month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
| Model | Rated Power(kw/hp) | Rated speed(r/min) | Specific fuel consumption(g/kw’h) | Specific oil consumption(g/kw’h) | Overall dimension L*B*H(mm) | Net weight(kg) |
| H12V190ZLC | 1580/2150 | 1450 | ≤200 | ≤1.0 | 3212*1597*2211 | 9500 |
| H12V190ZLC2 | 1500/2040 | 1500 | ≤200 | ≤1.0 | 3212*1597*2211 | 9500 |
| H12V190ZLC-1 | 1200/1630 | 1200 | ≤200 | ≤1.0 | 3212*1597*2211 | 9500 |
| H16V190ZLC1 | 2400/3200 | 1500 | ≤200 | ≤1.0 | 3525*2060*2331 | 13000 |
| H16V190ZLC | 2200/3000 | 1500 | ≤200 | ≤1.0 | 3525*2060*2331 | 13000 |
| H16V190ZLC-1 | 1650/2240 | 1200 | ≤200 | ≤1.0 | 3525*2060*2331 | 13000 |
| H8190ZLC | 1000/1360 | 1450 | ≤200 | ≤1.0 | 3349*1416*2225 | 8200 |
| H8190ZLC-1 | 830/1120 | 1200 | ≤200 | ≤1.0 | 3349*1416*2225 | 8200 |
| H8190ZLC-2 | 700/950 | 1000 | ≤200 | ≤1.0 | 3349*1416*2225 | 8200 |
| H8190ZLC-3 | 900/1225 | 1300 | ≤200 | ≤1.0 | 3349*1416*2225 | 8200 |
| Main technical data | ||||||
| No. and arrangement of cylinders:12,60.Vee | ||||||
| Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection | ||||||
| Bore:190mm | ||||||
| Stroke:215mm | ||||||
| Total displacement:73.15/48.77L | ||||||
| Compression ration:14.5:1 | ||||||
| Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel) | ||||||
| Starting method:Air motor or electric motor | ||||||
| Lubricating method:Pressure and splash lubrication |
Shandong Hongfan Power Technology Co., Ltd, located in the scenic city of Jinan, Shandong Province, is a rapidly growing enterprise in green energy and high-tech solutions. The company specializes in the production, sales, and technical services for diesel and gas generator sets and their parts, focusing on renowned domestic brands such as Jichai, Weichai, Shengdong, Zichai, and Sinotruk.
Our Strengths
Comprehensive Warehousing System
With two warehouses spanning over 2,000 square meters, the company ensures a fully stocked inventory of components, enabling quick response times and timely delivery to meet diverse customer needs.
Expert Technical Team
The company boasts a highly skilled technical team with over 15 key professionals experienced in engine assembly, generator set installation and commissioning, maintenance, and power station operations. The team is adept at executing medium and major repairs and on-site operations both domestically and internationally.
Product Offerings
-
Jinan Diesel Engine: Jichai 190 series, 6190, 8190, 12V190, 16V190 diesel and gas engine.
-
Shengdong Gas Generator: 500kW, 700kW gas generators.
-
Weichai Engines: 6170Z, 8170Z, CW6200, CW8200, R6160Z, WP12, and WP series.
-
Weichai Baudouin Series: 6M26, 6M33, 12M26, 12M33, 16M33, 12M55, M26, M33, M55 Series.
-
Zichai Engines: Z6170, Z8170, 6210, 8210, LB8250, LC8250, ZC6200, Z6180, Z8180, Z6150, 6300, 8300.
-
Generator Sets: (20-2000KW) from leading domestic brands such as Jichai, Shengdong, Zichai, and Yuchai.
-
Maintenance Services: Maintenance and repair services for 190 series engines.
-
Power Station Services: Operation and maintenance services.
Organizational Structure
Marketing Department
-
Domestic Market: The domestic segment caters to industries such as mining, oil drilling, marine engines, and emergency power supply.
-
International Market: The company operates in regions like Africa, Asia, the Americas, and the Middle East, maintaining stable partnerships with clients from countries such as Russia, Kazakhstan, Indonesia, Malaysia, Bangladesh, the Philippines, Thailand, Chile, Ecuador, Brazil, Libya, Nigeria, and Greece.
Procurement Department
Focused on strategic planning and execution based on sales contracts, ensuring seamless supply chain operations.
Warehousing Department
Handles inventory management, logistics, and export packaging.
Technical Department
Conducts quality inspections, engine assembly, and medium-to-major repairs.
Success Stories
The company has successfully completed various projects, showcasing its expertise and commitment to quality.
Commitment to Excellence
Shandong Hongfan Power Technology Co., Ltd. is committed to delivering high-quality products and reliable services with integrity and innovation. The company has earned widespread acclaim and loyalty from customers through continuous improvement and exceptional service.
