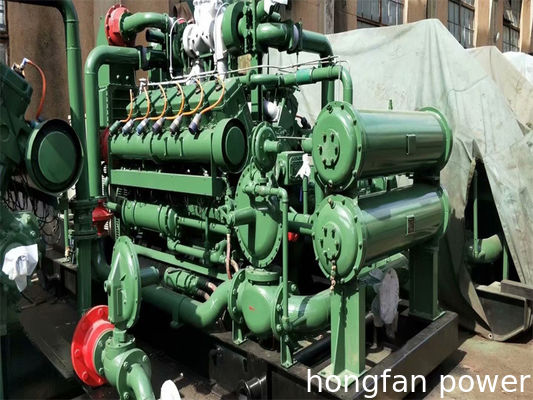

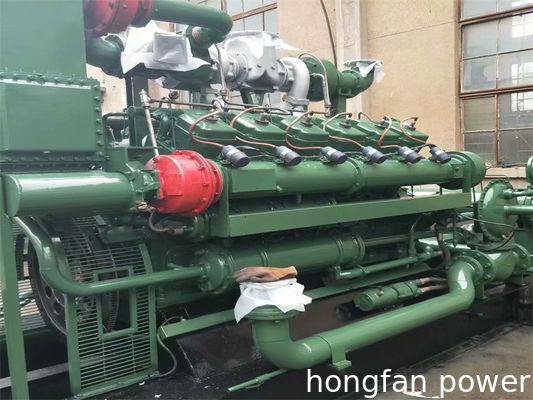

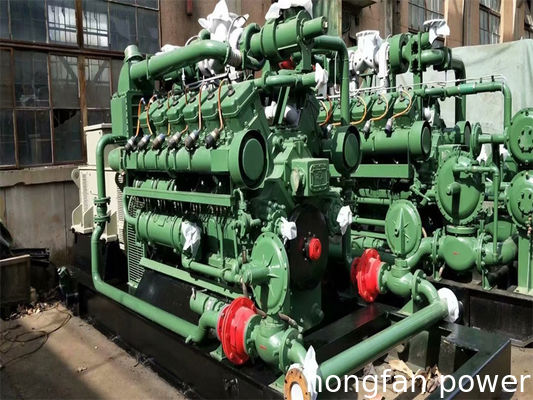

Generator set model: 500GJ1PwT-ESM3.
Engine model: T12V190ZL-2
Type: 4-way, spark plug, water-cooled. Turbocharged cooling. The number of cylinders is 12.
Cylinder location: V, angle 60.
The cylinder diameter is 190 mm.
Piston stroke:210 mm.
Performance 71.45
Rated speed: 1000 rpm.
Oil consumption <0.8/kwh
Gas-thermal power:10 MJ/kWh.
Exhaust temperature <550 C.
Outlet water temperature: <85 C.
Oil pressure in the main oil line:400-800 kPa.
Turbocharger H145 oil pressure: 200-400 kPa.
Cooling method: forced circulation of water. cooling, cooling of the fan radiator.
Lubrication method: combined pressure and spray lubrication.
Number of cylinders: exhaust end 1-2-3-4-5-6-7-8-9-10-11-12.
Ignition method: spark plugs.
Starting mode: 24DC alternator.
Crankshaft rotation: counterclockwise.
1 Pusher rod shaft gasket PC 12 96 12VB.01.146C- Ⅰ
2 Pusher shaft sleeve (bushing) PC 5 144 12VB.01.05
3 Head Water Tube Rubber O-ring PC 74 576 12V.01.12
4 Head water tube PC 150 480 12V.01.09
5 Pad PC 0 12 127.01.20.05
6 Block water jacket gasket PC 0 54 12VB.01.87
7 Oil pump bracket adjusting shim PC 0 8 12V.01.112A
8 Bottom liner PC 55 36 12VB.01.24A
9 Upper liner PC 32 36 12VB.01.23A
10 Thrust top liner PC 2 7 12VB.01.21A
eleven Thrust bottom liner PC 6 7 12VB.01.22A
12 Upper main bearing locating pin PC 0 7 12V.01.27
13 Pad PC 0 7 12VB.01.139
14 Rear gear housing cover PC 0 7 12VB.01.145
15 Side cover gasket PC. 0 16 12VB.01.54
16 Water pump gasket (pump) PC. eleven 24 12VB.01.82
17 Bolt M12×130 PC. 0 24 GB/T5782
18 Pad PC. 0 6 12VB.11.09
19 Gear end gasket PC 13 7 12VB.01.20.01
20 Gear side sealing cover PC 0 6 12VB.01.20.02A
21 Crankshaft oil seal PC 0 6 PG130×160×15 HG4-692-67
22 Pad PC 0 6 12V.01.54
23 Camshaft bushing PC 28 50 12VB.01.34
24 Sleeve rocker with free end PC 2 6 12VB.01.43
25 Cylinder liner O-ring PC 36 216 12V.01.14
26 Wide cylinder liner O-ring PC 36 72 12VB.01.136
27 Upper sealing ring for cylinder liners PC 0 72 12VB.01.134
28 Cylinder liners PC. 47 72 12V.01.02C
29 Cylinder head side cover gasket PC. 16 72 12VB.01.03
thirty Gasket inspection block cover PC. 16 126 12V.01.45
31 Exhaust manifold bracket PC. 0 4 T79.01.01
32 Bolt M10×100 PC. 0 60 GB/T5782
33 Reducing valve gasket PC. 6 6 12V.01.79A
34 Turbine oil channel gasket PC 17 54 12V190.01.01
