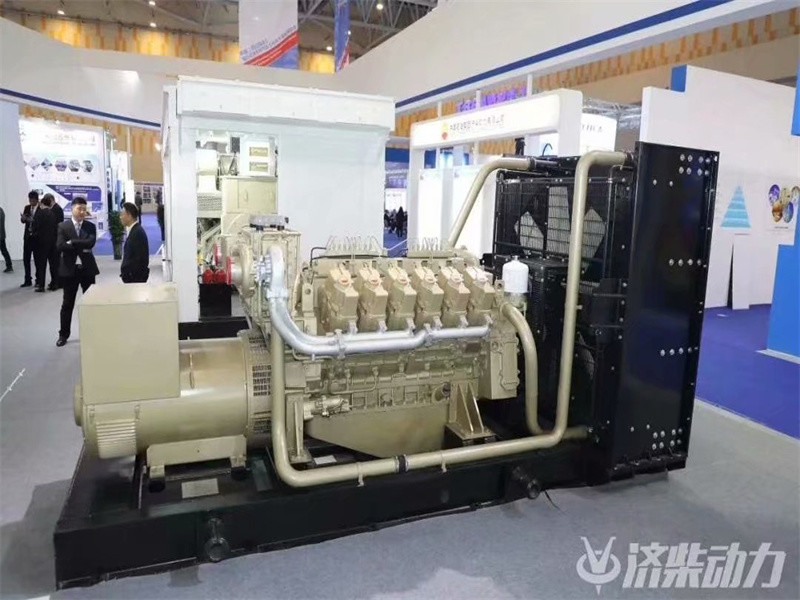

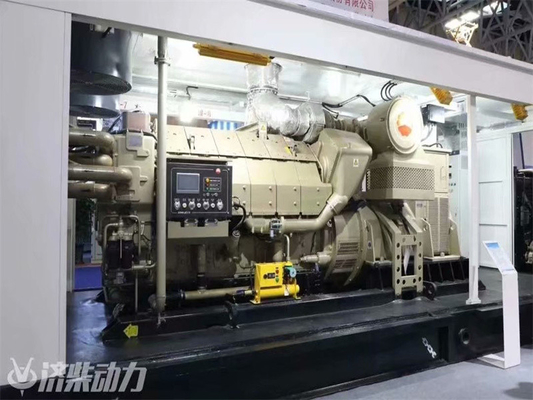

BL12V190ZL1 CNPC JICHAI drilling engine in Iran with the 1FC6 566-6&DSE8610

  • BL12V190ZL1 CNPC JICHAI drilling engine in Iran with the 1FC6 566-6&DSE8610
  • BL12V190ZL1 CNPC JICHAI drilling engine in Iran with the 1FC6 566-6&DSE8610
  • BL12V190ZL1 CNPC JICHAI drilling engine in Iran with the 1FC6 566-6&DSE8610
Place of Origin CHINA
Brand Name jichai
Certification CE
Model Number BL12V190
Minimum Order Quantity 1
Price 3478
Delivery Time 30 days
Supply Ability 200 pcs month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description



BL12V190ZL-1 Main Technical Specifications and Parameters

  • Rated Power: 1200 kW

  • Rated Speed: 1200 r/min

  • Fuel Consumption Rate: ≤202 g/kW·h

  • Lubricating Oil Consumption Rate: ≤1.0 g/kW·h

  • Overall Dimensions (L×W×H): 2950 × 1980 × 2312 mm

  • Net Weight: 9300 kg

  • Number and Arrangement of Cylinders: 12 cylinders, 60° V-type arrangement

  • Engine Type: Four-stroke, water-cooled, turbocharged and intercooled, direct injection combustion chamber

  • Cylinder Bore: 190 mm

  • Piston Stroke: 255 mm

  • Total Displacement: 86.72 L

  • Compression Ratio: 14.5:1

  • Rotation Direction: Counterclockwise (facing the output end)

  • Starting Method: Air motor or electric motor

  • Lubrication Method: Pressure and splash lubrication

  • Speed Regulation Mode: Hydraulic (or electro-hydraulic) governor, adjustable steady-state speed regulation rate from 0 to 5%

  • Main Applications and Configuration: Long-stroke diesel engine, used as main or auxiliary power for drilling rigs and marine vessels

Engine Parameters – AL12V190ZL Series

  • Model: AL12V190ZL-1

  • Rated Power (kW): 1100 / 1200

  • Rated Speed (r/min): 1000 / 1200

  • Bore × Stroke (mm × mm): 190 × 255

  • Number and Arrangement of Cylinders: 12 cylinders, V-type

  • Fuel Consumption Rate (g/kW·h): ≤202 / ≤205
